TECHNICAL DATA
| Product SKU | Size | Finish | Style | Overall Length (mm) | Well Depth (mm) | Bolt Clearance Depth (mm) | Working End Diameter (mm) | Drive End Diameter (mm) |
|---|---|---|---|---|---|---|---|---|
|
5/8in | Magnesium Phosphate | 6 Point | 85 | 9 | 23.9 | 27 | 38 |
|
11/16in | Magnesium Phosphate | 6 Point | 85 | 10 | 23.9 | 29 | 38 |
|
3/4in | Magnesium Phosphate | 6 Point | 85 | 11 | 23.9 | 30 | 38 |
|
13/16in | Magnesium Phosphate | 6 Point | 85 | 12.5 | 25.9 | 32 | 38 |
|
7/8in | Magnesium Phosphate | 6 Point | 85 | 14 | 27.9 | 34 | 38 |
|
15/16in | Magnesium Phosphate | 6 Point | 85 | 14.5 | 29.8 | 36 | 38 |
|
1in | Magnesium Phosphate | 6 Point | 85 | 14.5 | 31.7 | 40 | 40 |
|
1-1/16in | Magnesium Phosphate | 6 Point | 85 | 14.5 | 32.5 | 40 | 40 |
|
1-1/8in | Magnesium Phosphate | 6 Point | 85 | 18 | 34.4 | 42 | 42 |
|
1-3/16in | Magnesium Phosphate | 6 Point | 85 | 18 | 36.2 | 44 | 44 |
|
1-1/4in | Magnesium Phosphate | 6 Point | 85 | 18 | 38.2 | 44 | 44 |
|
1-5/16in | Magnesium Phosphate | 6 Point | 85 | 20 | 40 | 47 | 44 |
|
|

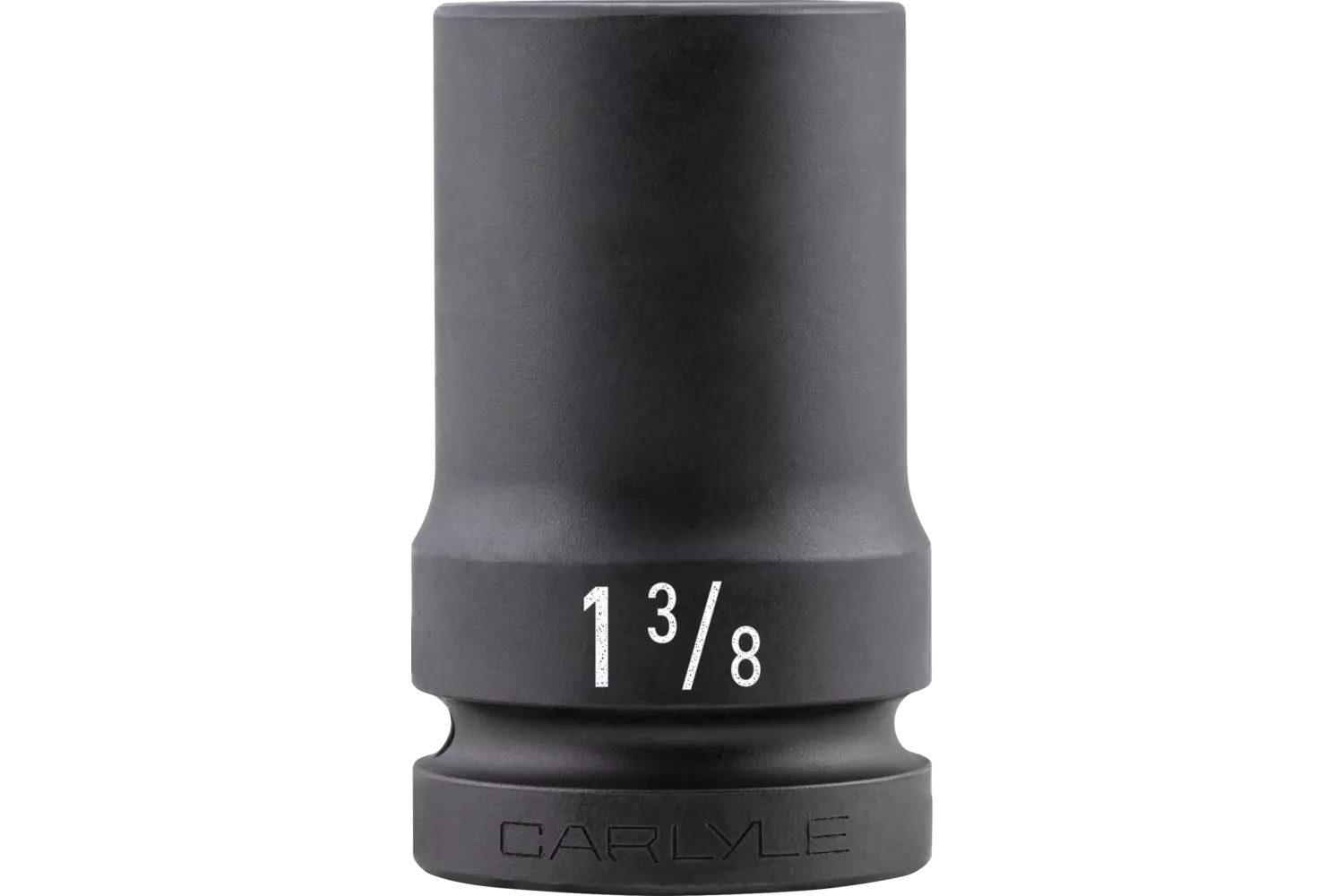

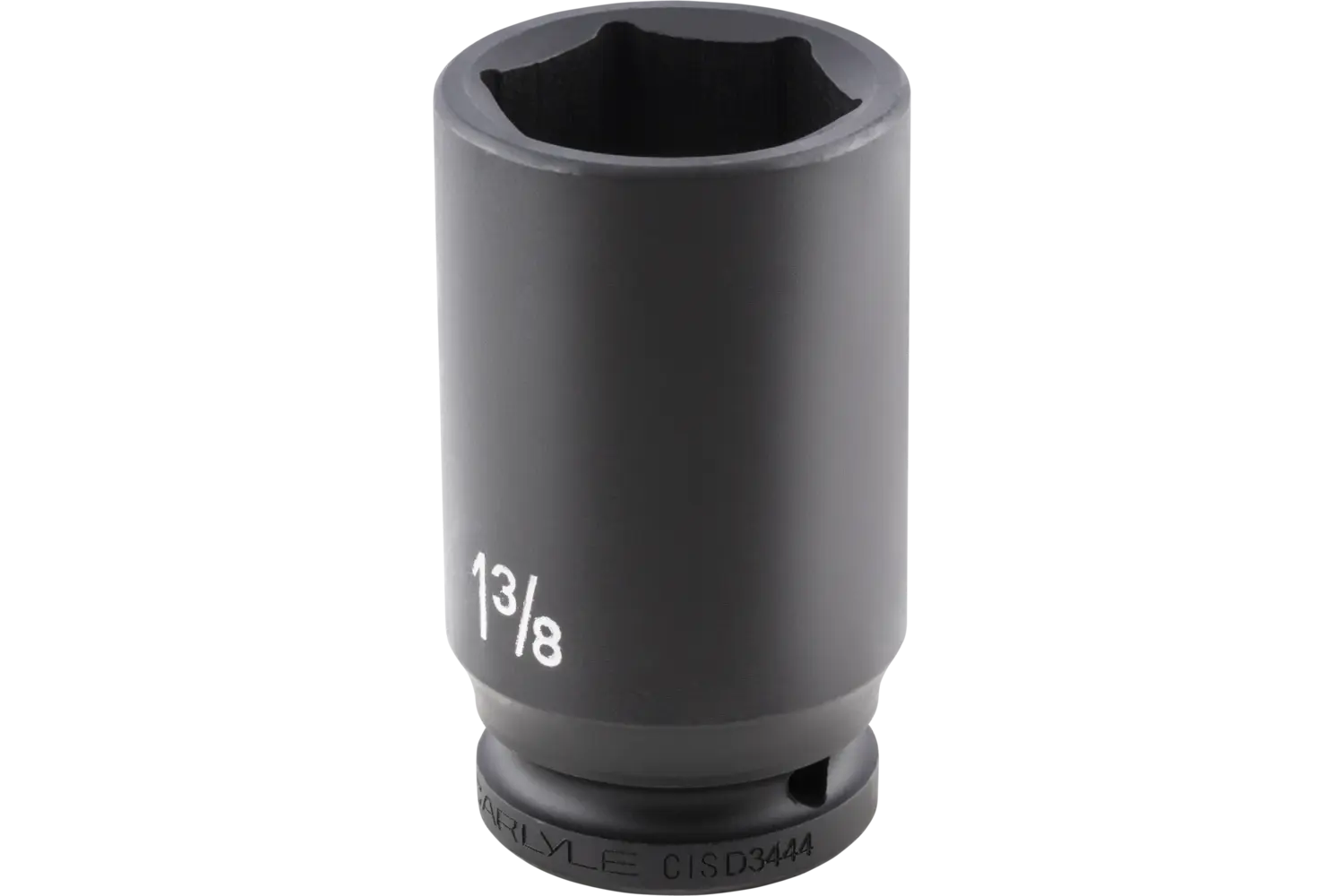

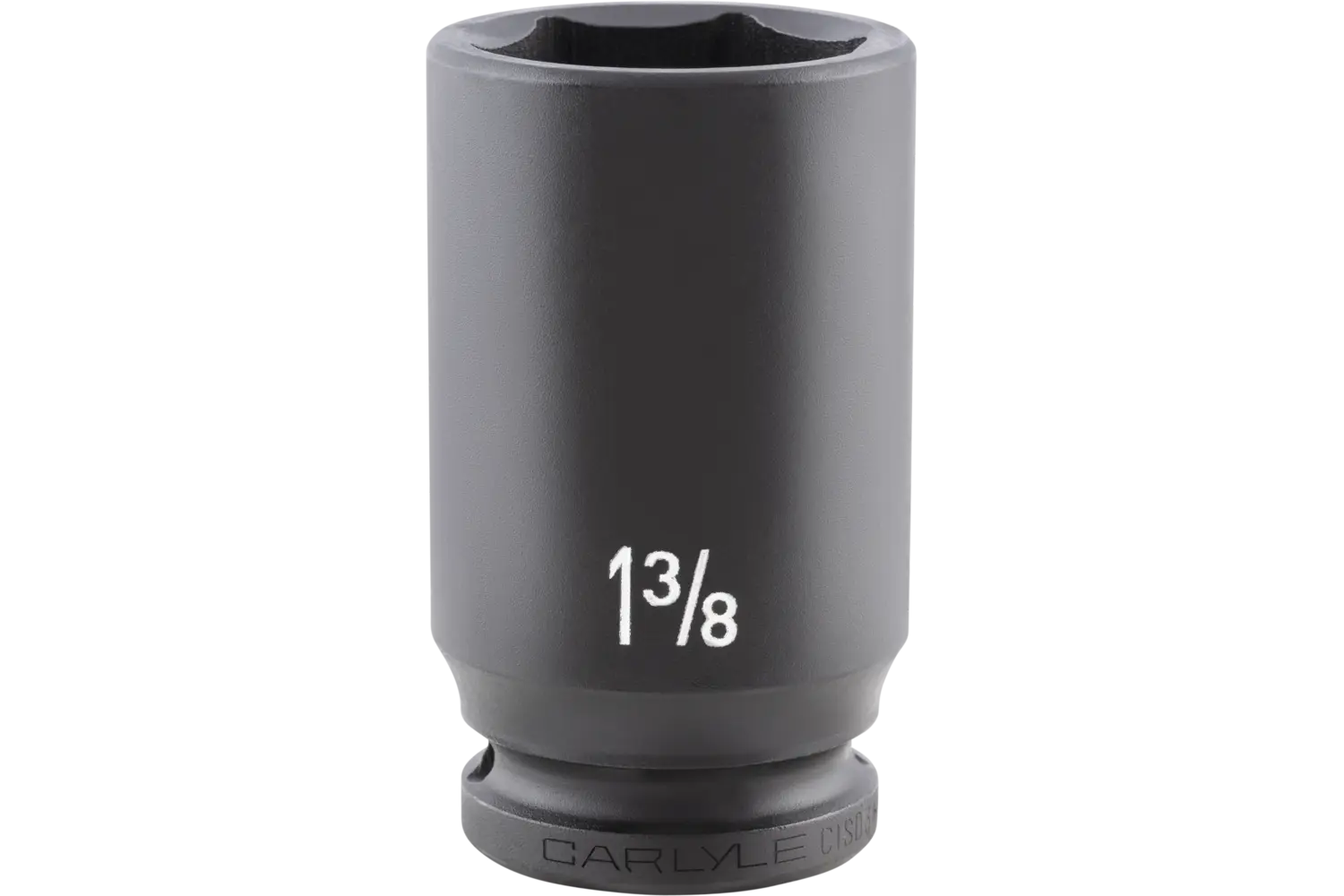

1-3/8in | Magnesium Phosphate | 6 Point | 85 | 20 | 41.5 | 50 | 44 |
|
1-7/16in | Magnesium Phosphate | 6 Point | 85 | 20 | 43.5 | 50.5 | 44 |
|
1-1/2in | Magnesium Phosphate | 6 Point | 85 | 23 | 45 | 53 | 44 |
|
1-9/16in | Magnesium Phosphate | 6 Point | 85 | 23 | 47.5 | 56 | 44 |
|
1-5/8in | Magnesium Phosphate | 6 Point | 85 | 23 | 49.8 | 58 | 44 |
|
1-11/16in | Magnesium Phosphate | 6 Point | 85 | 26 | 53 | 63.5 | 44 |
|
1-3/4in | Magnesium Phosphate | 6 Point | 85 | 26 | 54.5 | 65 | 44 |
|
1-13/16in | Magnesium Phosphate | 6 Point | 85 | 27 | 56 | 67 | 44 |
|
1-7/8in | Magnesium Phosphate | 6 Point | 85 | 28 | 57 | 68 | 44 |
|
1-15/16in | Magnesium Phosphate | 6 Point | 85 | 28 | 59.5 | 70 | 44 |
|
2in | Magnesium Phosphate | 6 Point | 85 | 28 | 62 | 71 | 54 |
|
2-1/16in | Magnesium Phosphate | 6 Point | 95 | 29.3 | 64 | 74 | 54 |
|
2-1/8in | Magnesium Phosphate | 6 Point | 95 | 30.3 | 65.5 | 77 | 54 |
|
2-3/16in | Magnesium Phosphate | 6 Point | 95 | 30.3 | 67.5 | 77 | 54 |
|
2-1/4in | Magnesium Phosphate | 6 Point | 95 | 32.4 | 69.5 | 80 | 54 |
|
2-5/16in | Magnesium Phosphate | 6 Point | 95 | 32.5 | 72 | 82 | 54 |
|
2-3/8in | Magnesium Phosphate | 6 Point | 95 | 33.1 | 74 | 84 | 54 |
|
2-7/16in | Magnesium Phosphate | 6 Point | 95 | 34.4 | 76 | 85 | 54 |
|
2-1/2in | Magnesium Phosphate | 6 Point | 95 | 34.4 | 78 | 86 | 54 |
|
2-9/16in | Magnesium Phosphate | 6 Point | 100 | 42 | 80 | 89 | 62 |
|
2-5/8in | Magnesium Phosphate | 6 Point | 100 | 42 | 82 | 91 | 62 |
|
2-11/16in | Magnesium Phosphate | 6 Point | 105 | 42 | 82 | 93 | 62 |
|
2-3/4in | Magnesium Phosphate | 6 Point | 105 | 42 | 84 | 95 | 62 |
|
2-13/16in | Magnesium Phosphate | 6 Point | 110 | 42 | 86 | 98 | 62 |
|
2-7/8in | Magnesium Phosphate | 6 Point | 110 | 42 | 88 | 100 | 62 |
|
2-15/16in | Magnesium Phosphate | 6 Point | 120 | 42 | 90 | 102 | 62 |
|
3in | Magnesium Phosphate | 6 Point | 120 | 42 | 92 | 104 | 62 |
