1 in. Drive Deep Impact Sockets - Metric
1 in. Drive Deep Impact Sockets - Metric
TECHNICAL DATA
| Product SKU | Size | Finish | Style | Overall Length (mm) | Well Depth (mm) | Bolt Clearance Depth (mm) | Working End Diameter (mm) | Drive End Diameter (mm) |
|---|---|---|---|---|---|---|---|---|

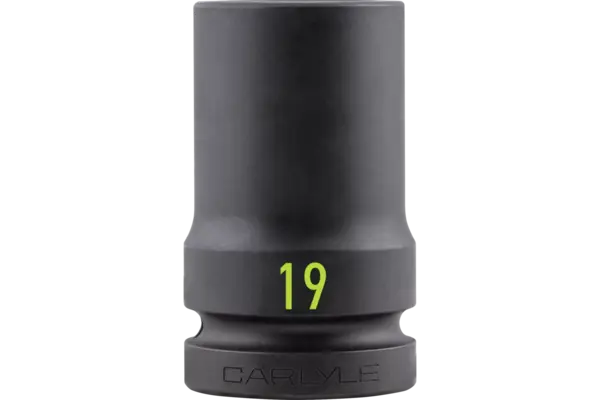

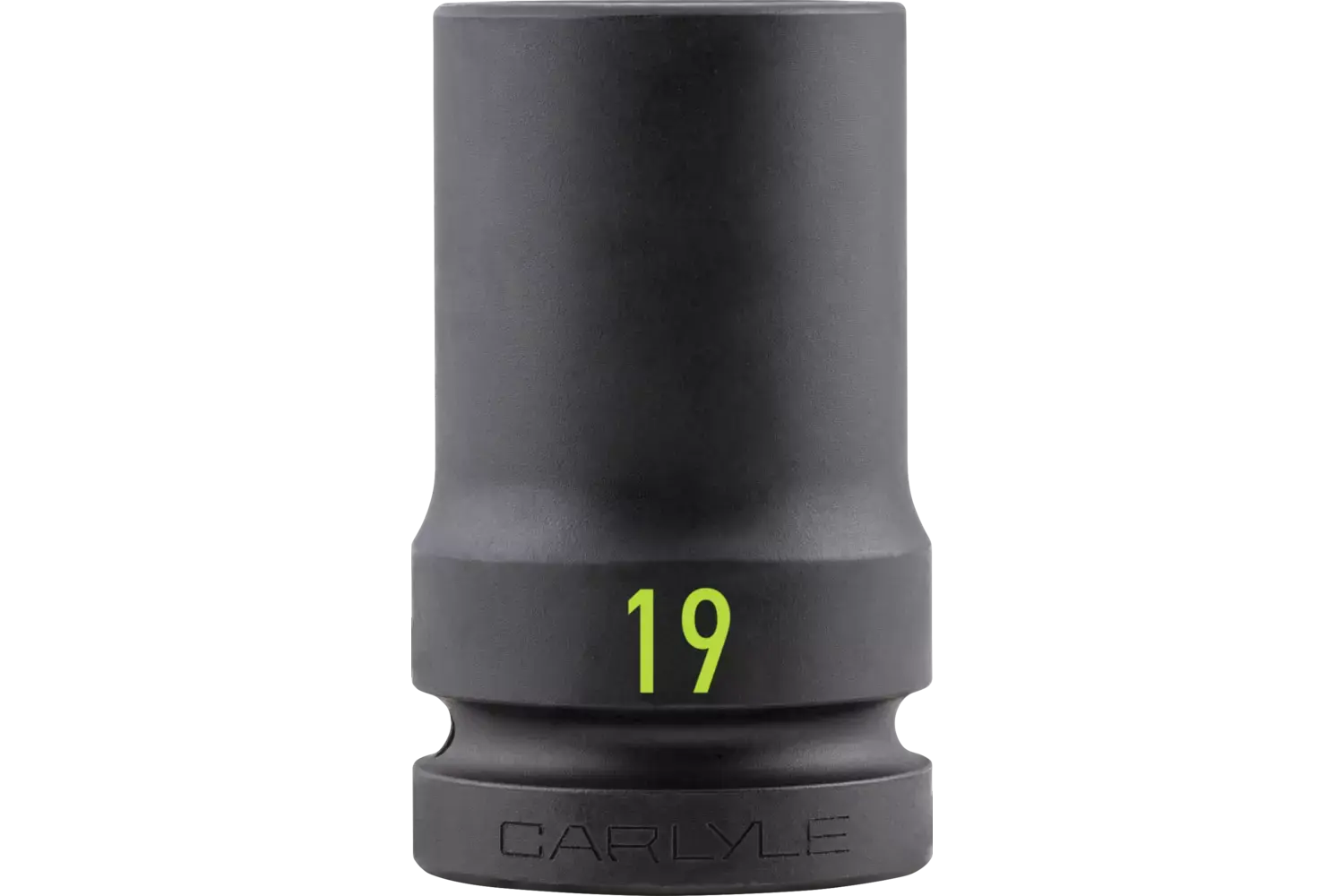

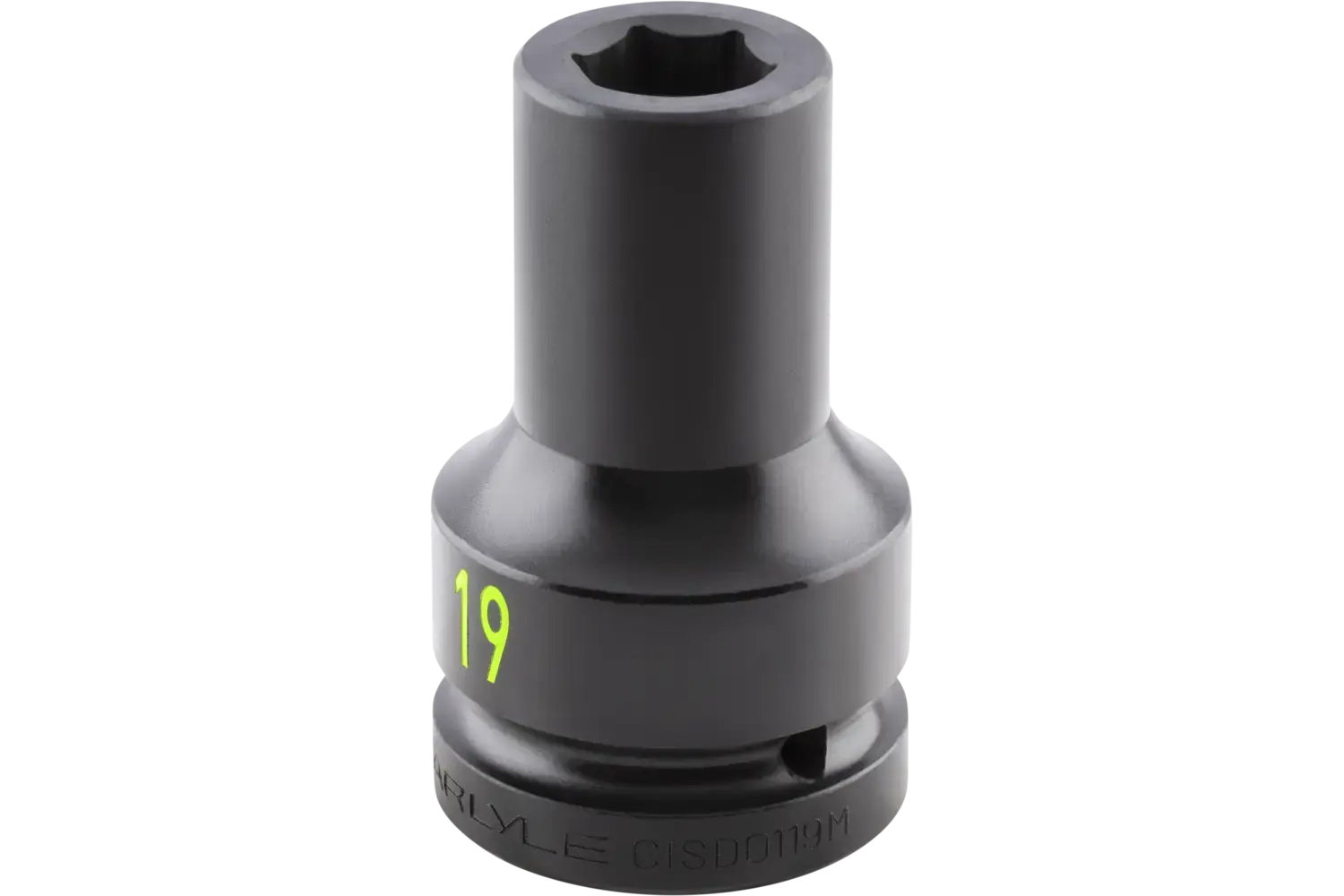

| CISD0119M | 19mm | Magnesium Phosphate | 6 Point | 90 | 11.1 | 24 | 35 | 54 |

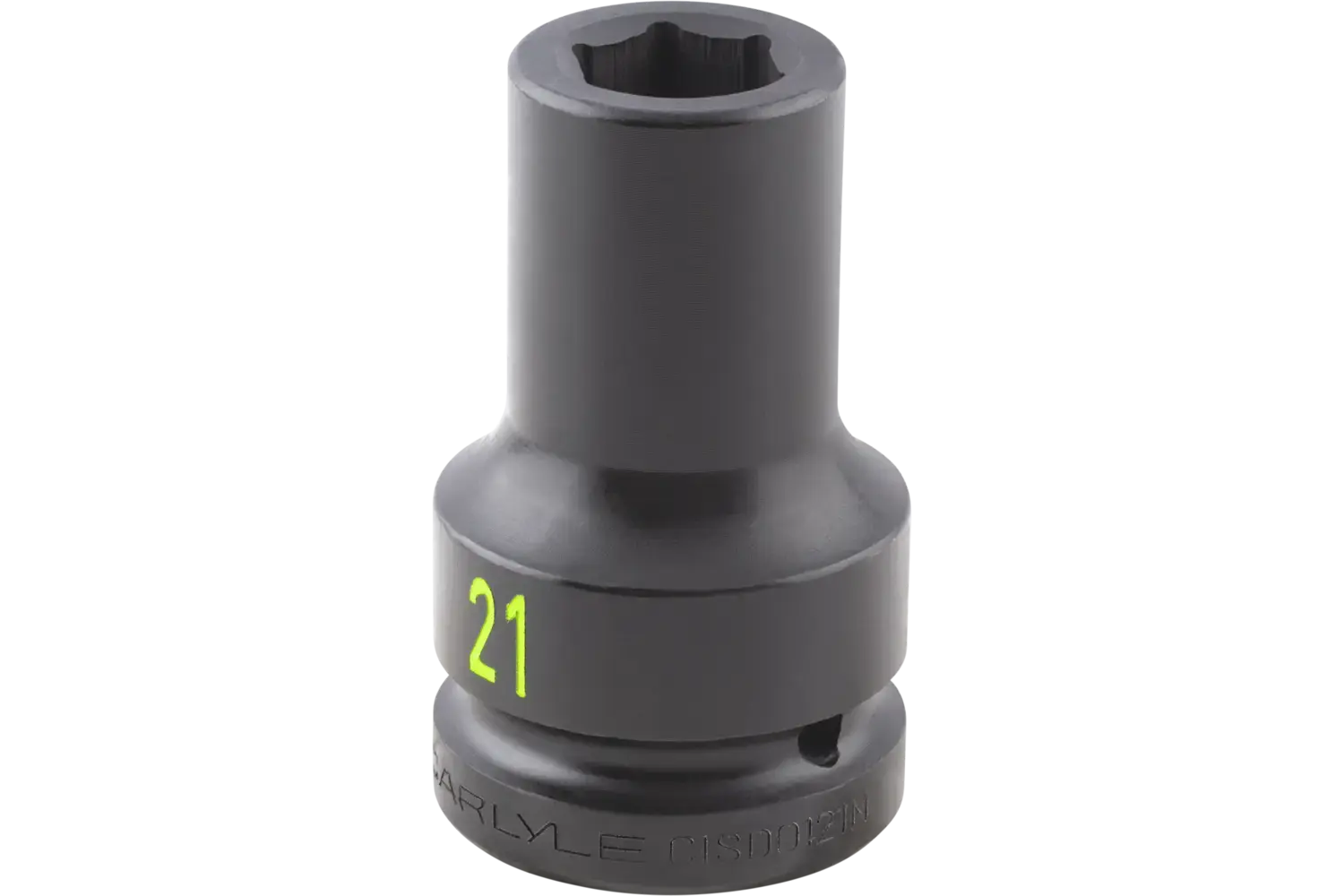

| CISD0121M | 21mm | Magnesium Phosphate | 6 Point | 90 | 12.5 | 26.5 | 37.5 | 54 |

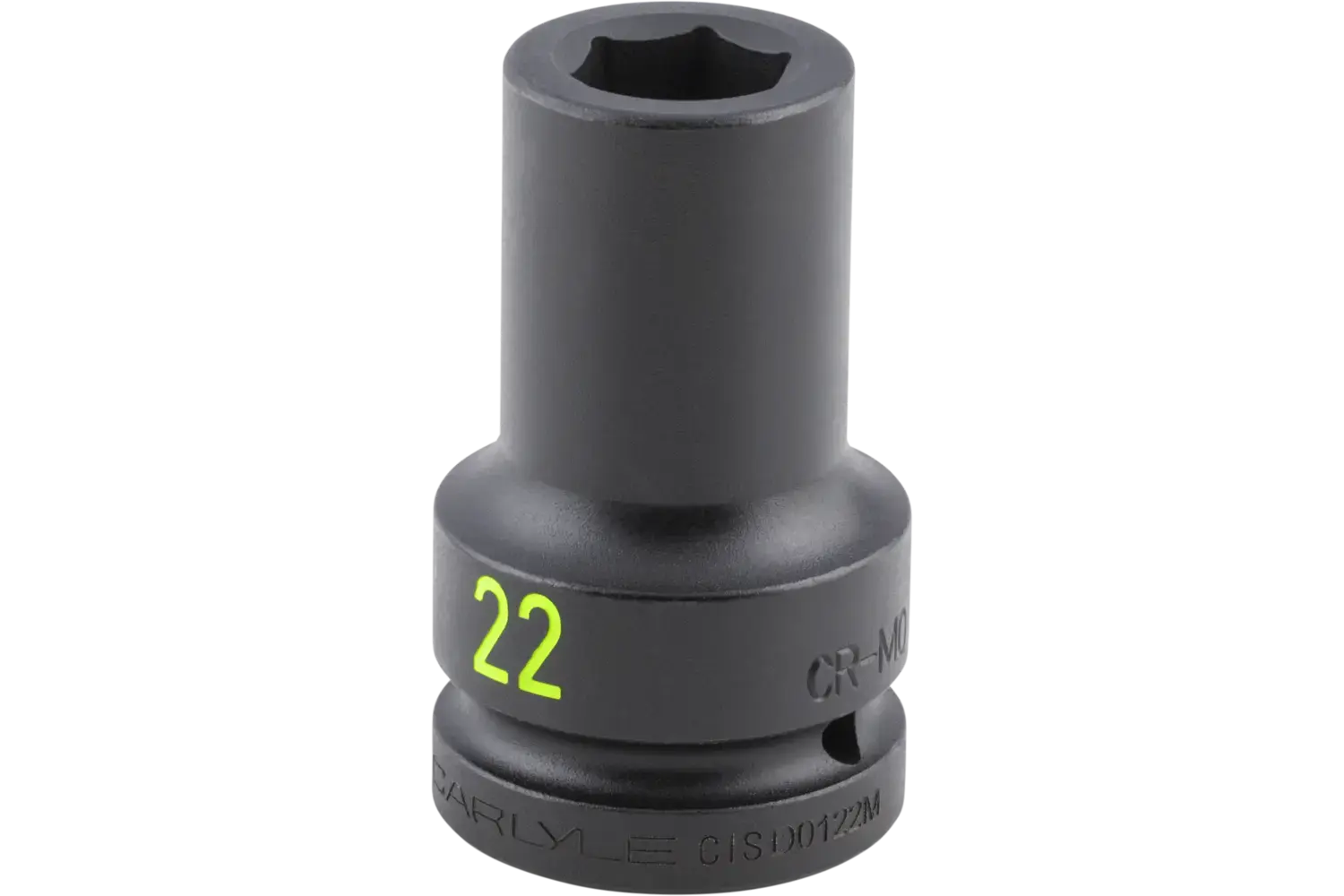

| CISD0122M | 22mm | Magnesium Phosphate | 6 Point | 90 | 12.5 | 27.7 | 39 | 54 |

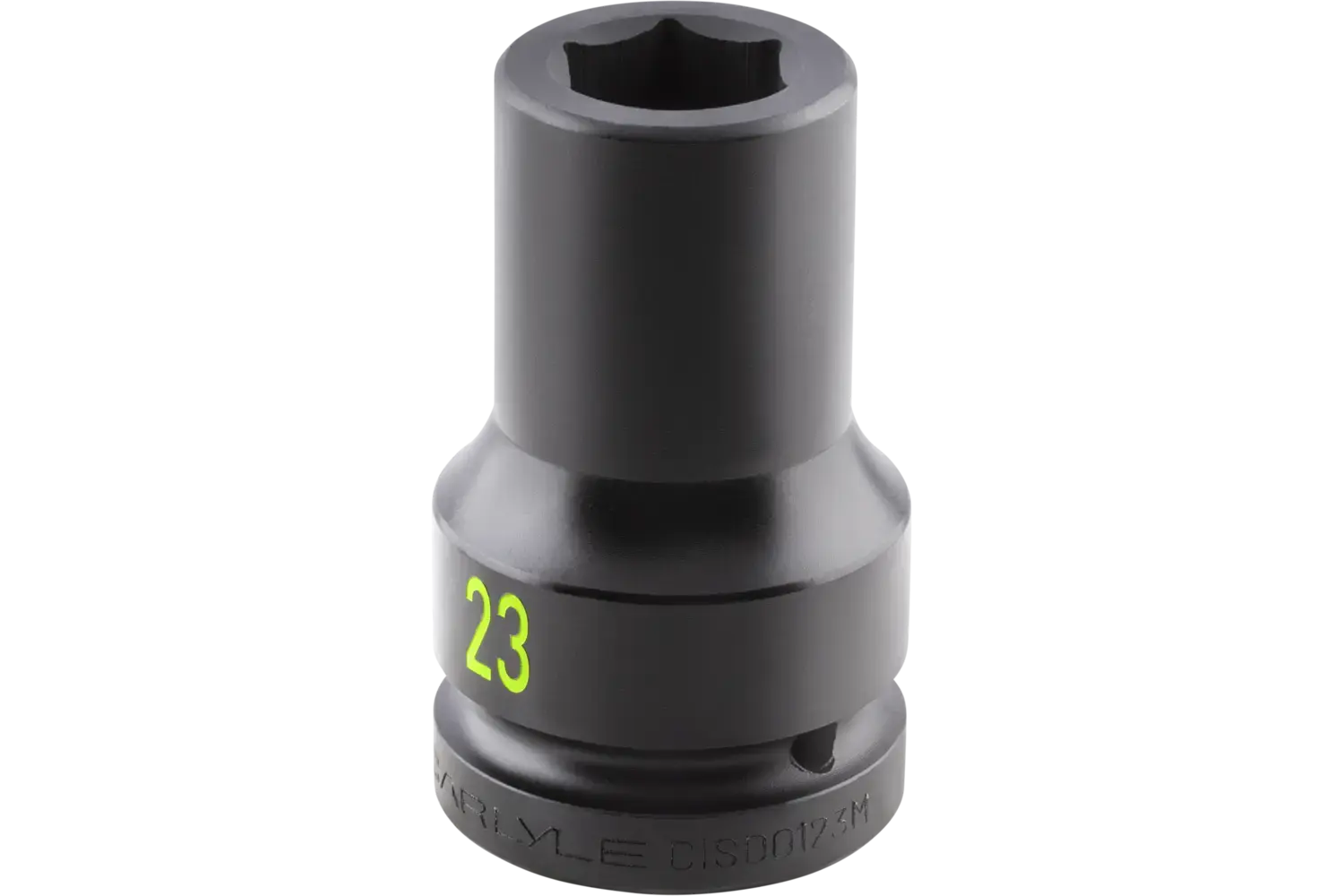

| CISD0123M | 23mm | Magnesium Phosphate | 6 Point | 90 | 13.9 | 28.8 | 40 | 54 |
| CISD0124 | 3/4in | Magnesium Phosphate | 6 Point | 90 | 9.1 | 23.9 | 35 | 54 |

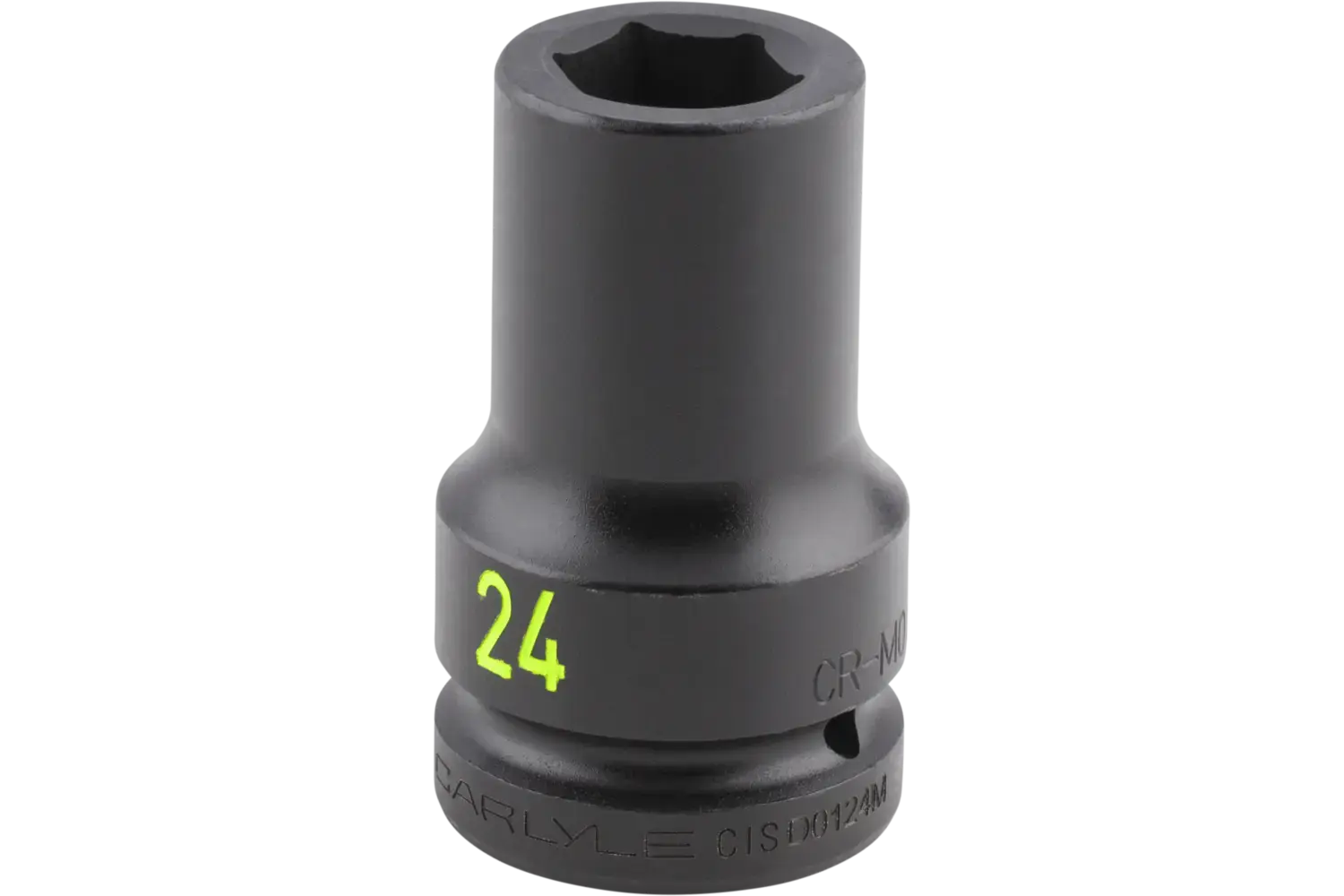

| CISD0124M | 24mm | Magnesium Phosphate | 6 Point | 90 | 13.9 | 30 | 41.5 | 54 |

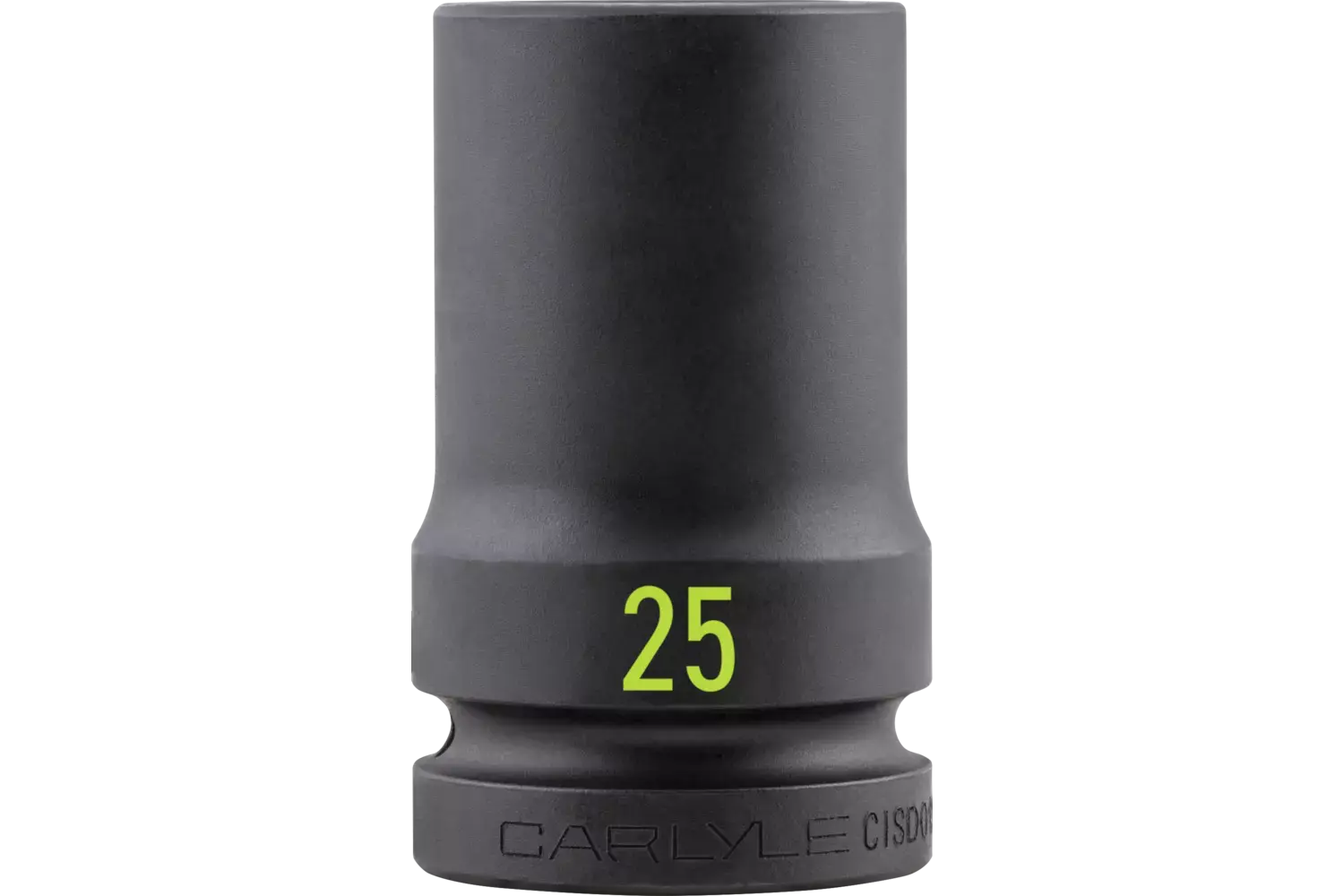

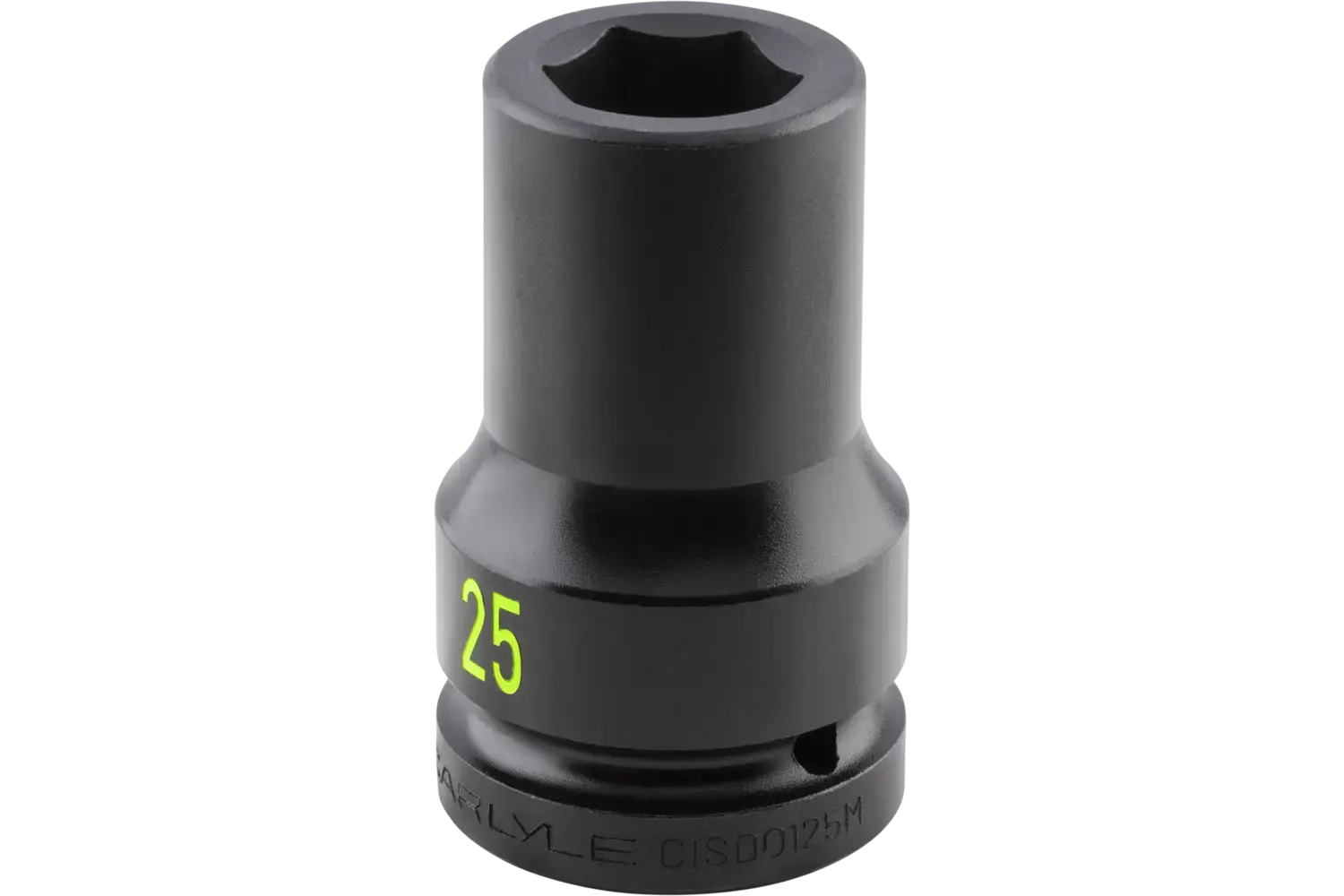

| CISD0125M | 25mm | Magnesium Phosphate | 6 Point | 90 | 15.8 | 31 | 42.5 | 54 |

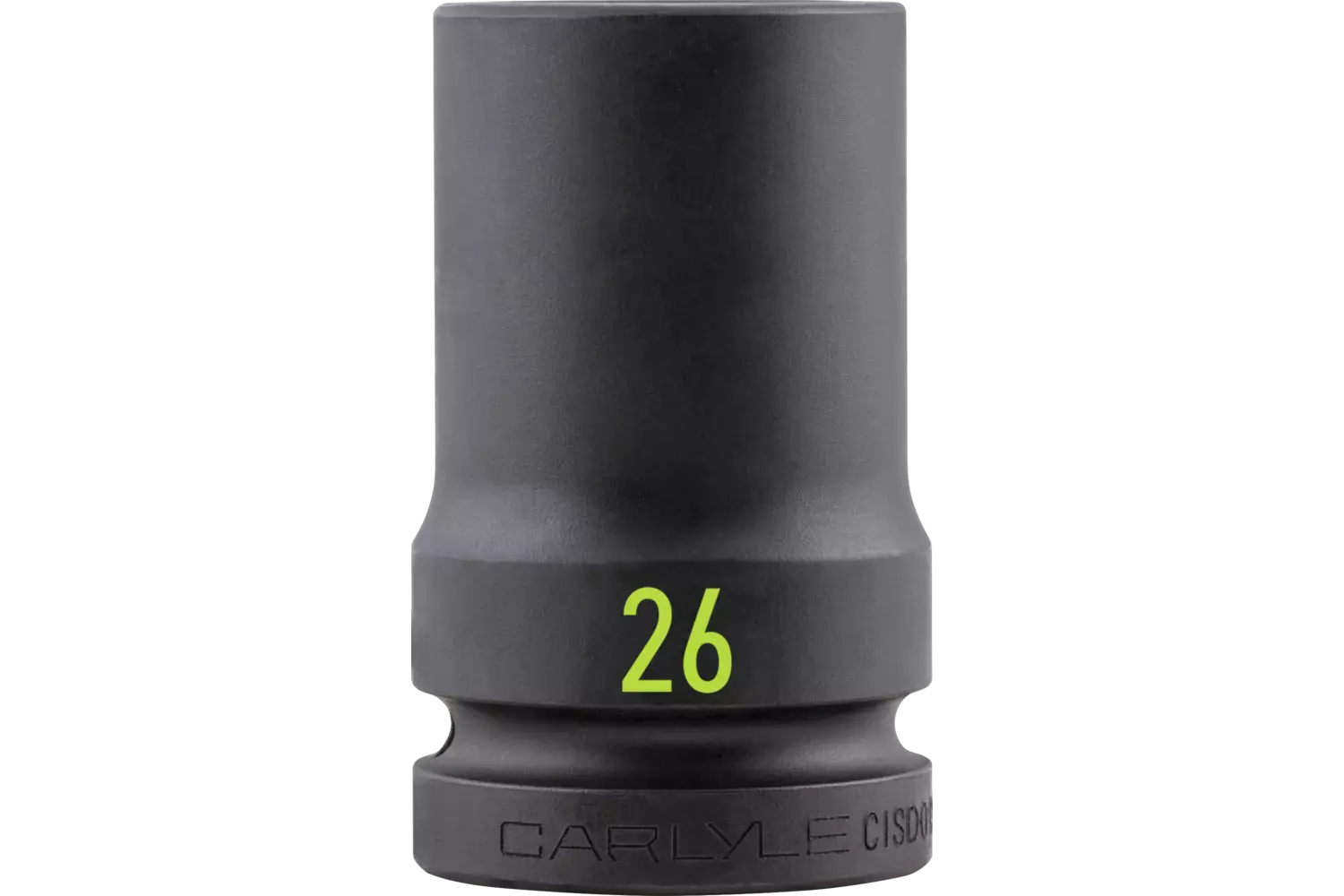

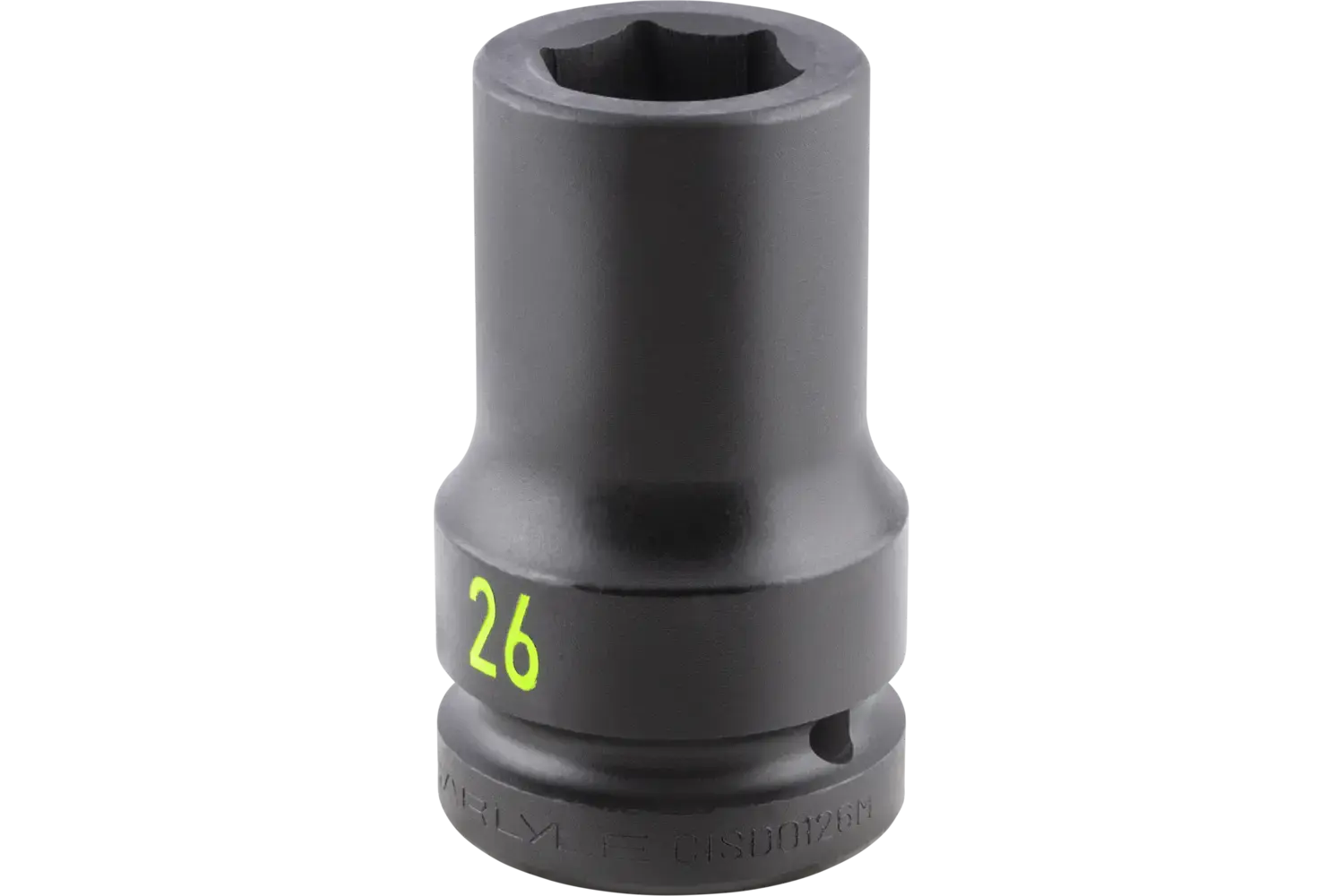

| CISD0126M | 26mm | Magnesium Phosphate | 6 Point | 90 | 15.8 | 32 | 44 | 54 |

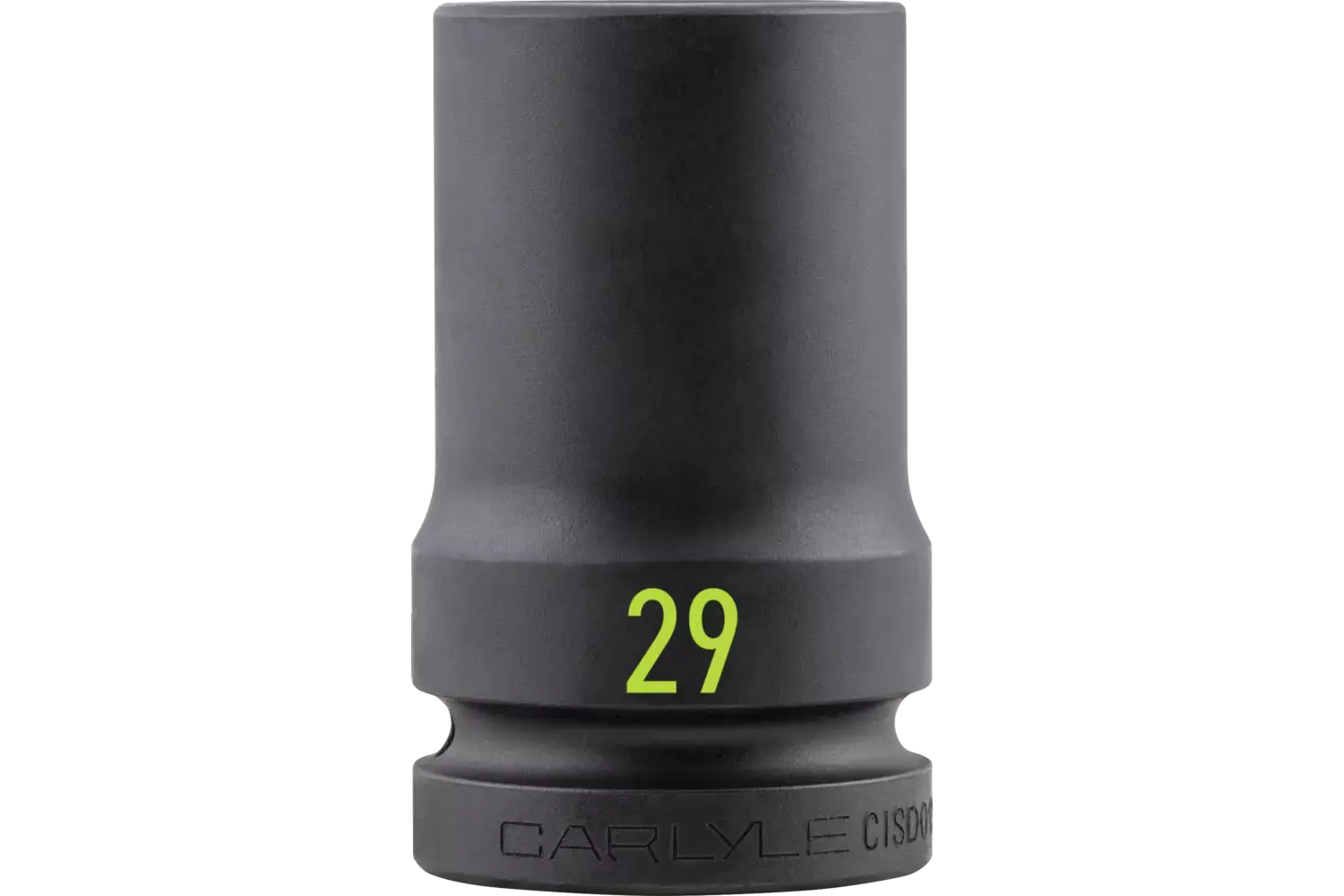

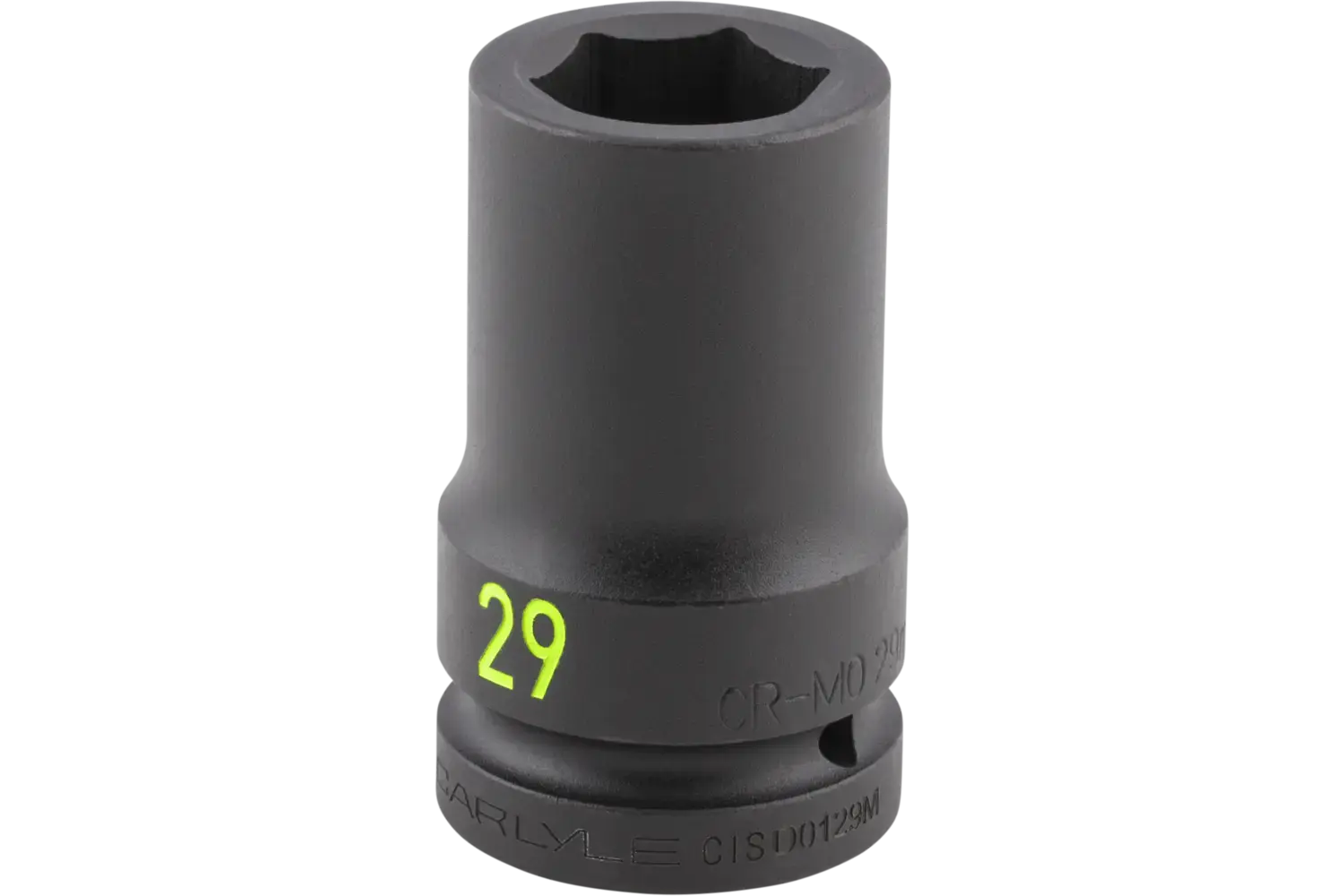

| CISD0129M | 29mm | Magnesium Phosphate | 6 Point | 90 | 16.7 | 36 | 47.5 | 54 |

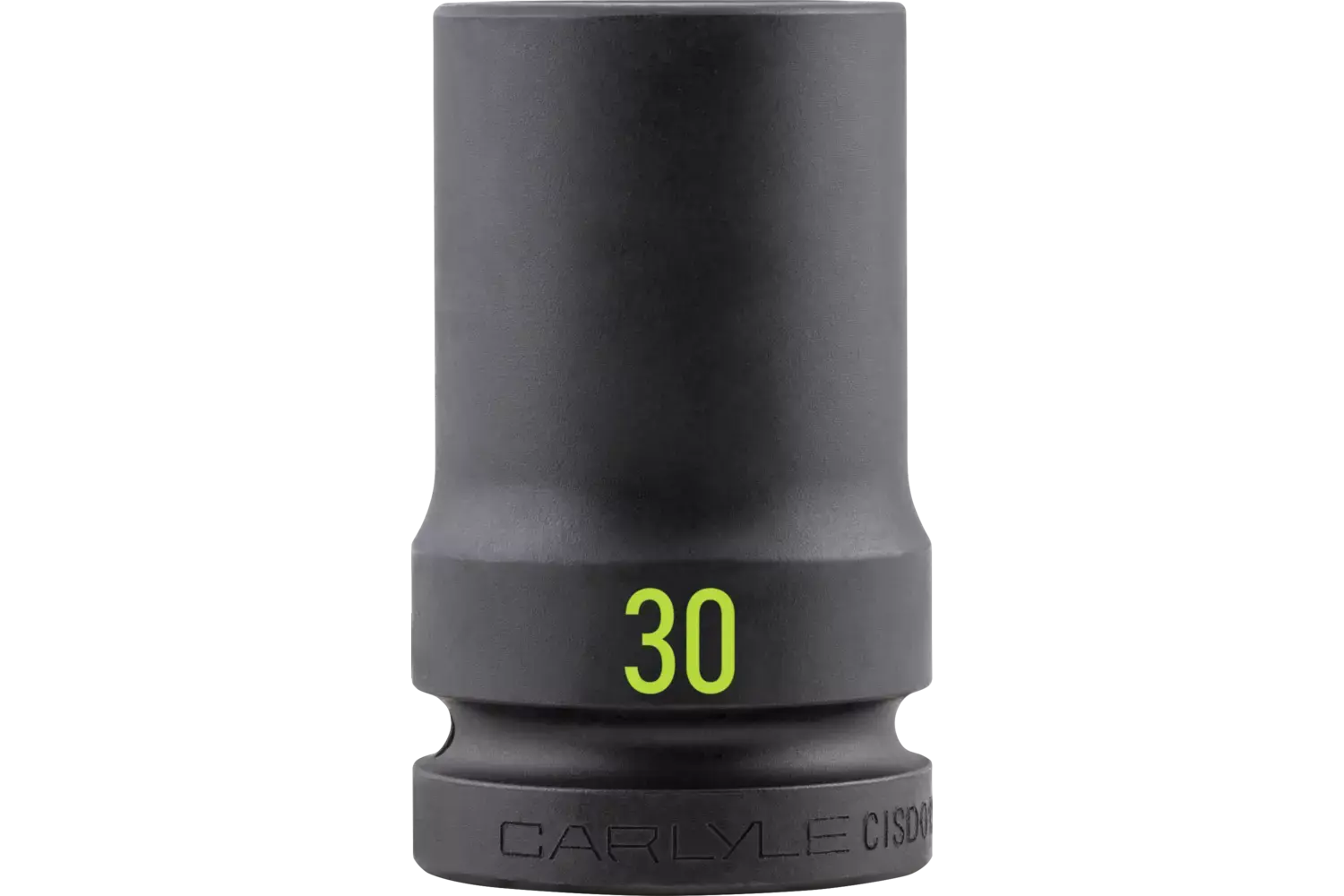

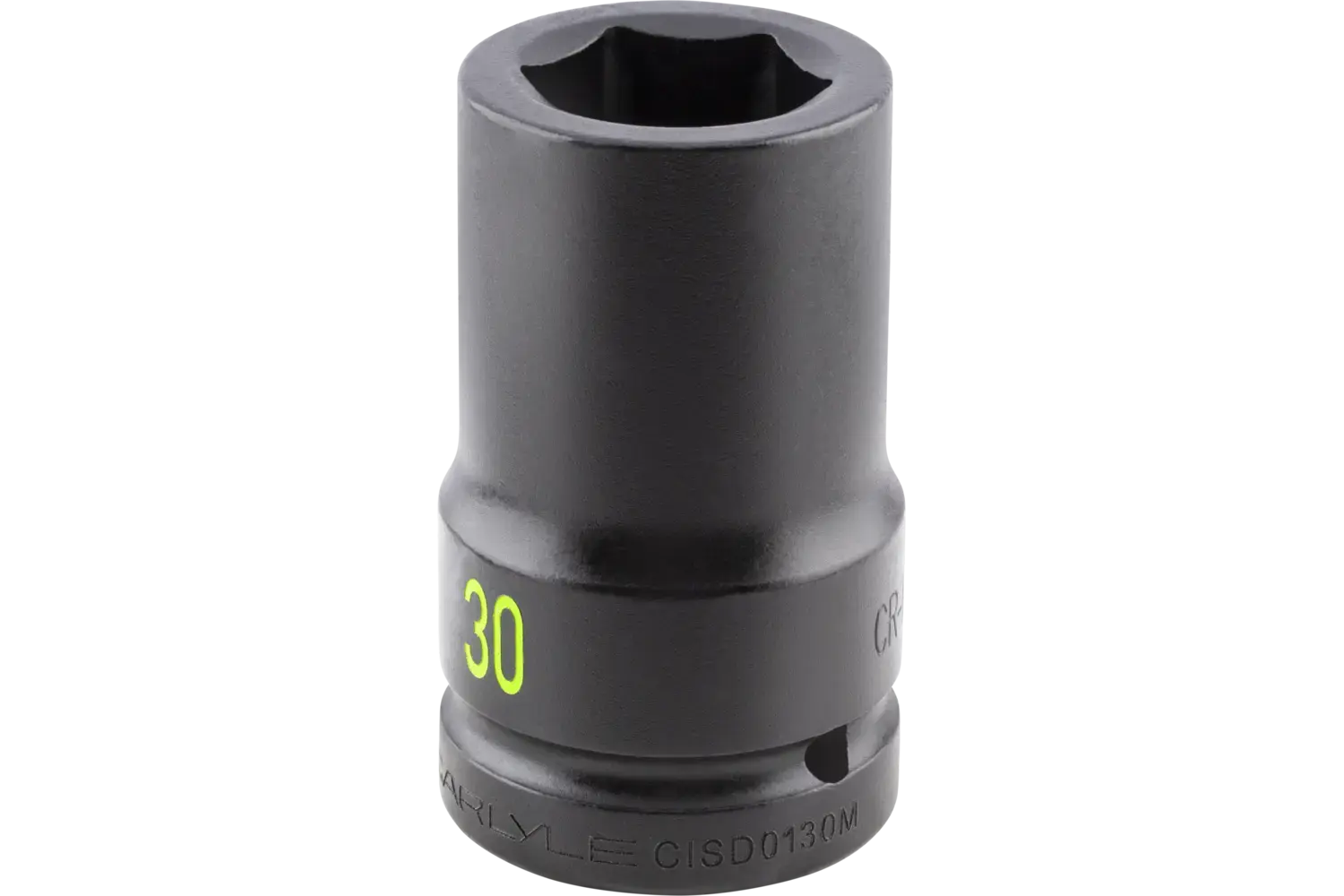

| CISD0130M | 30mm | Magnesium Phosphate | 6 Point | 92 | 16.7 | 36.2 | 49 | 54 |

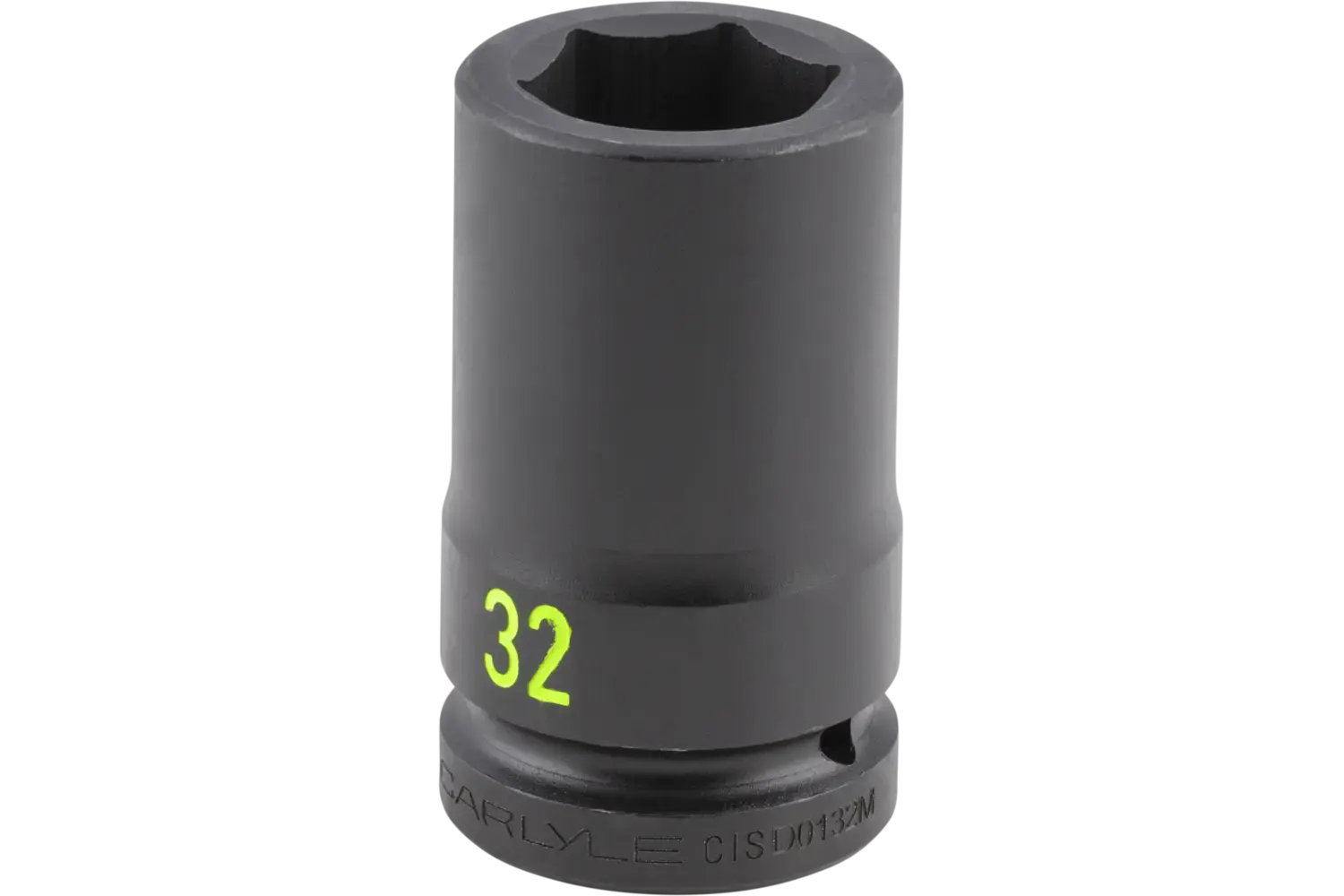

| CISD0132M | 32mm | Magnesium Phosphate | 6 Point | 92 | 18.3 | 38.5 | 51.5 | 54 |
| CISD0133M | 33mm | Magnesium Phosphate | 6 Point | 92 | 19.1 | 39.7 | 52 | 54 |

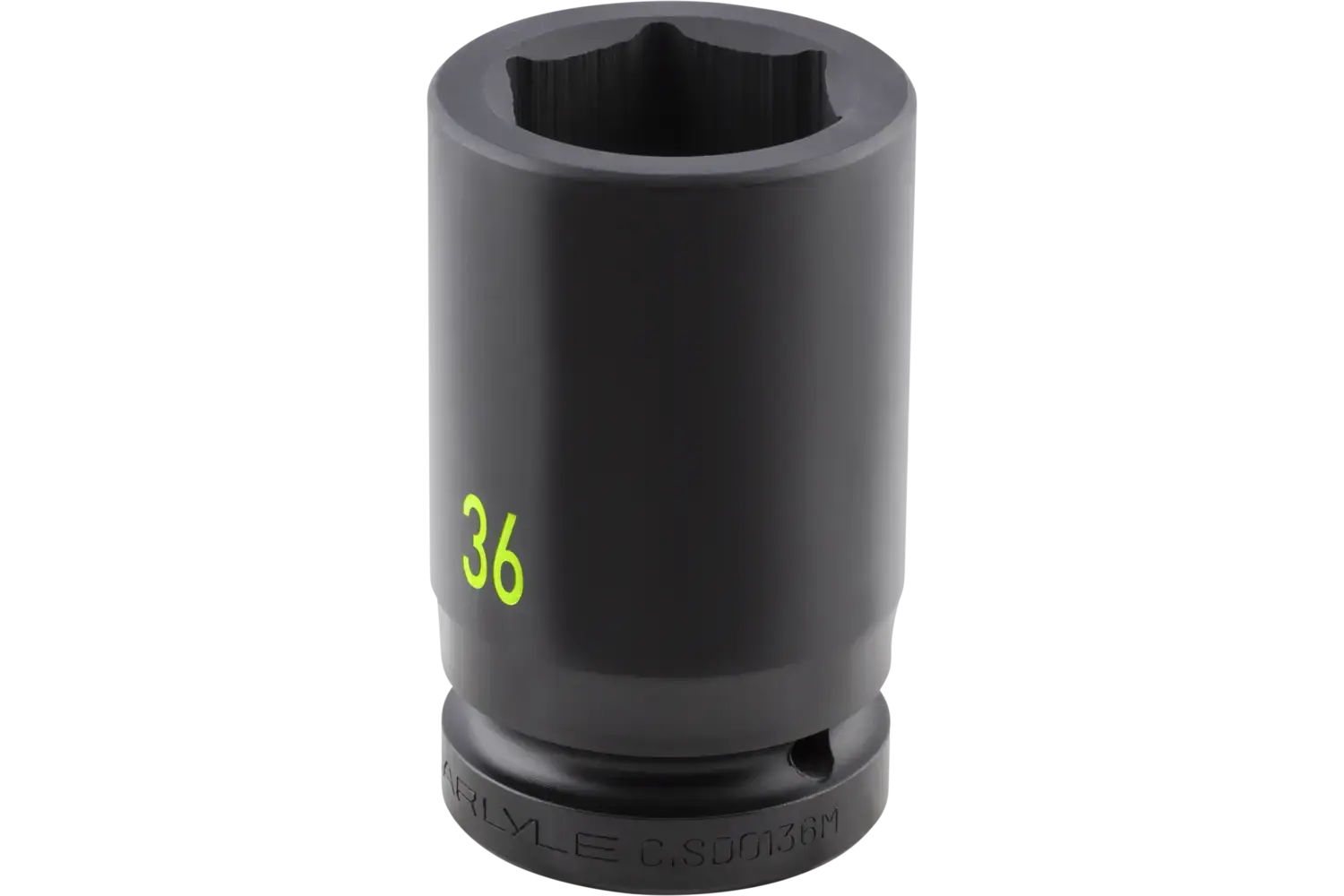

| CISD0136M | 36mm | Magnesium Phosphate | 6 Point | 92 | 21.5 | 43.2 | 56.5 | 54 |

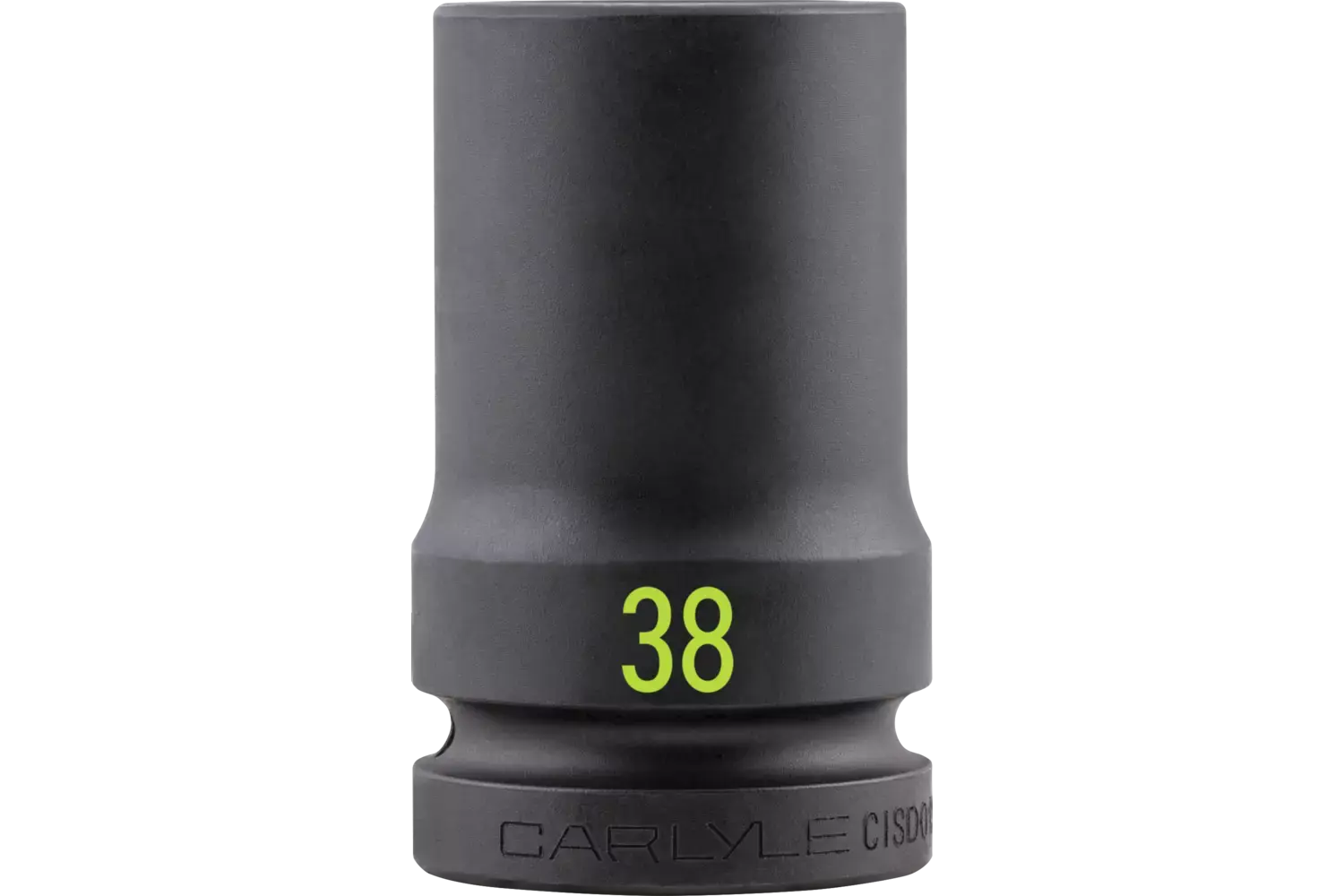

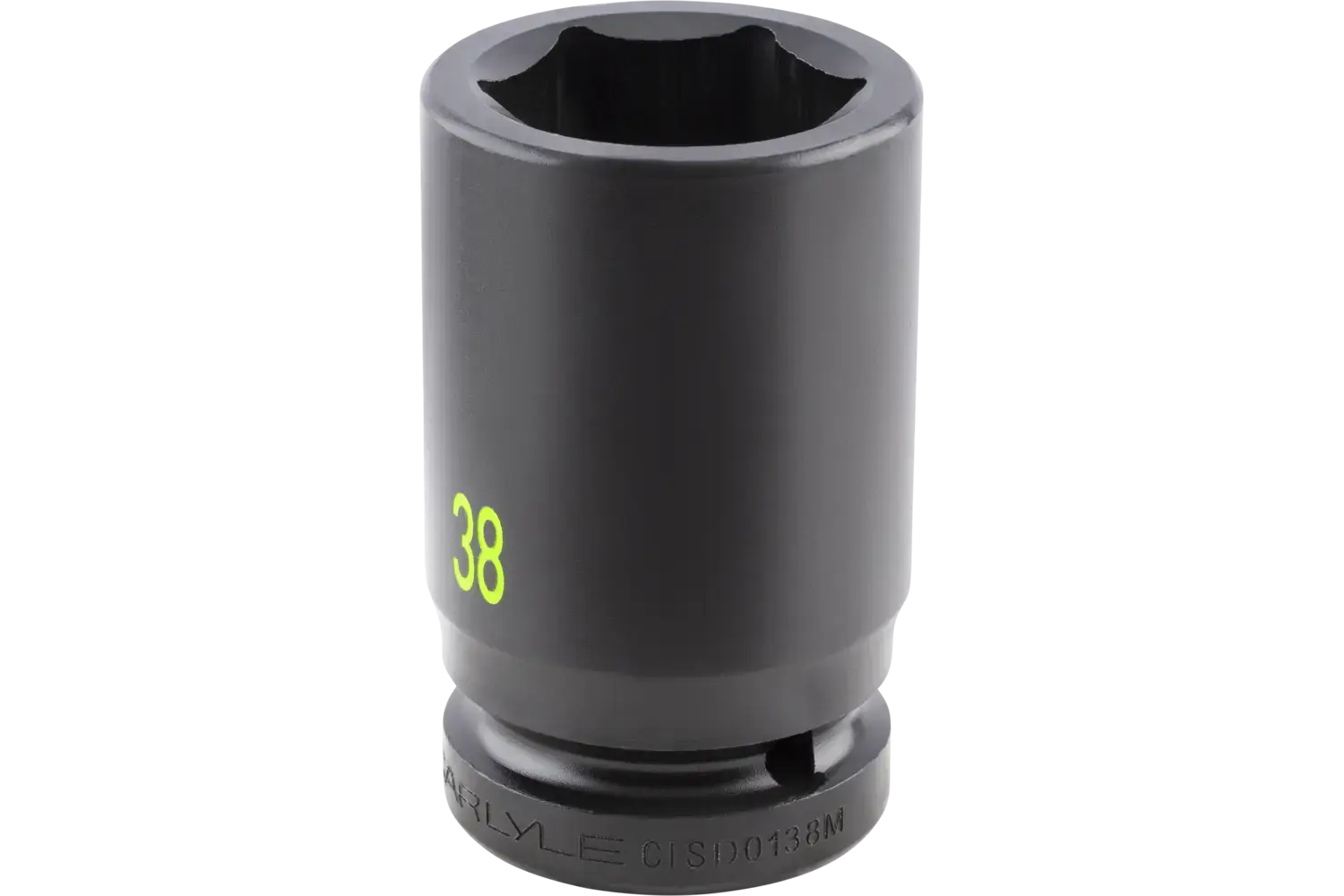

| CISD0138M | 38mm | Magnesium Phosphate | 6 Point | 92 | 22.3 | 45.5 | 58 | 54 |

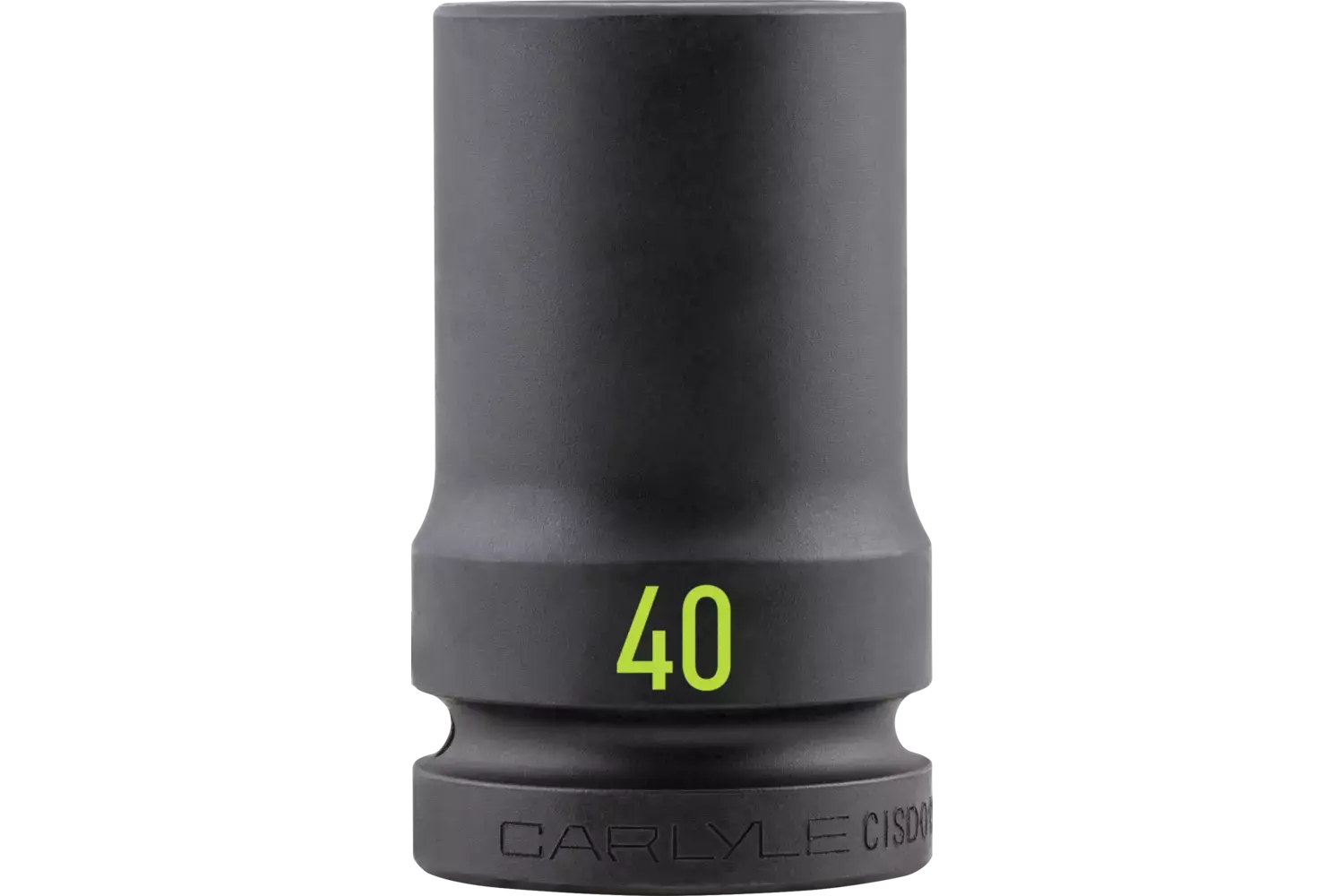

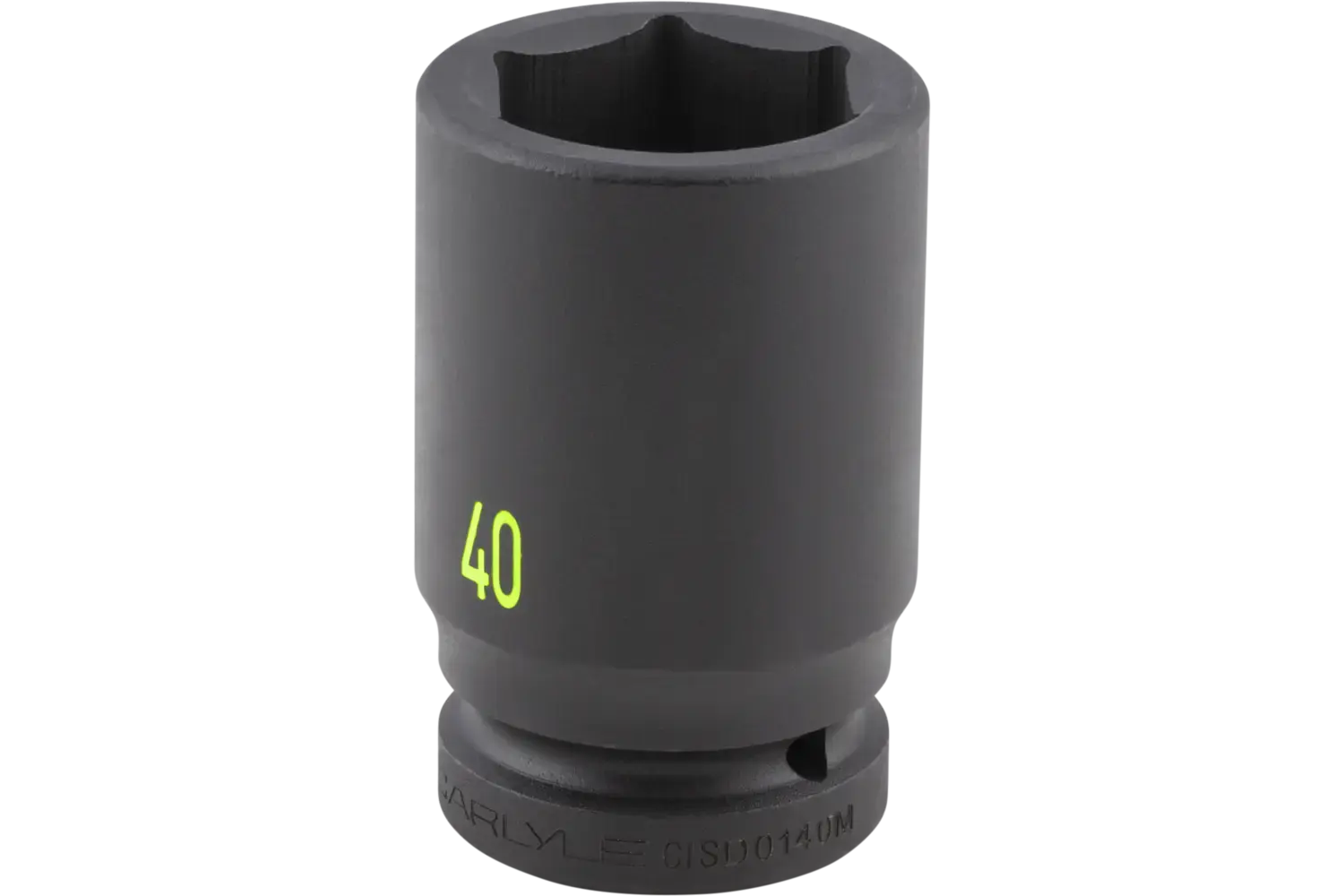

| CISD0140M | 40mm | Magnesium Phosphate | 6 Point | 92 | 22.8 | 48.2 | 60 | 54 |

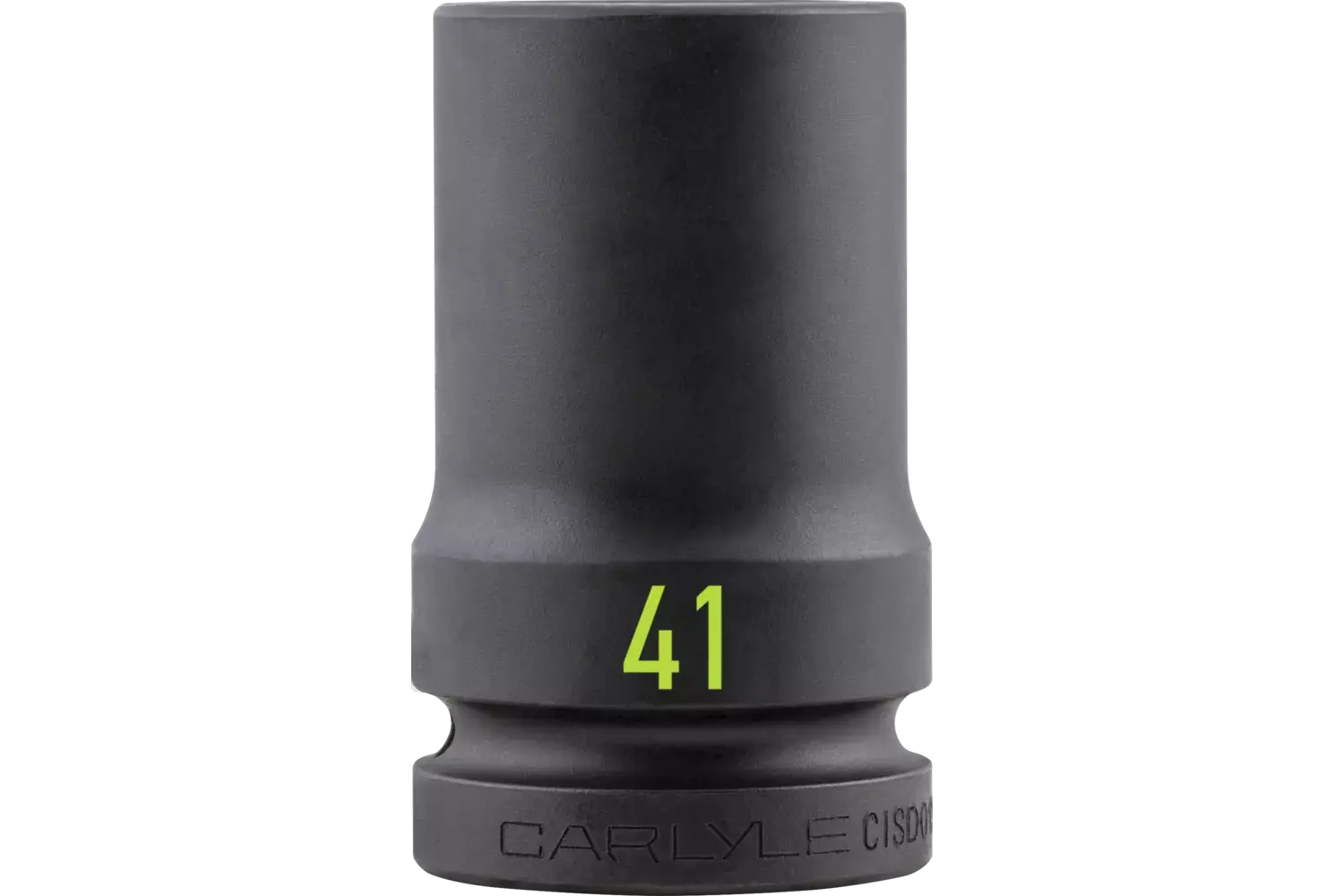

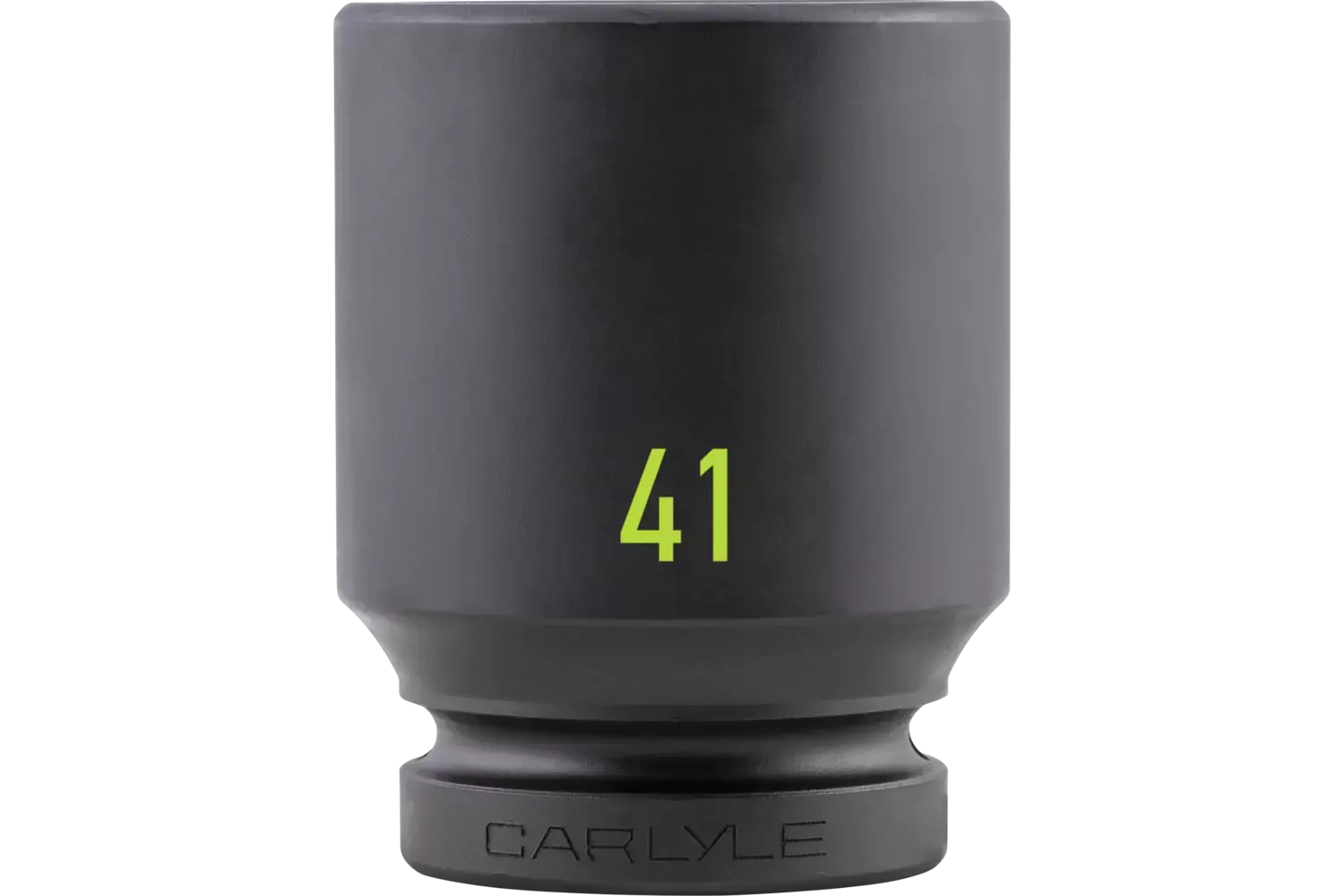

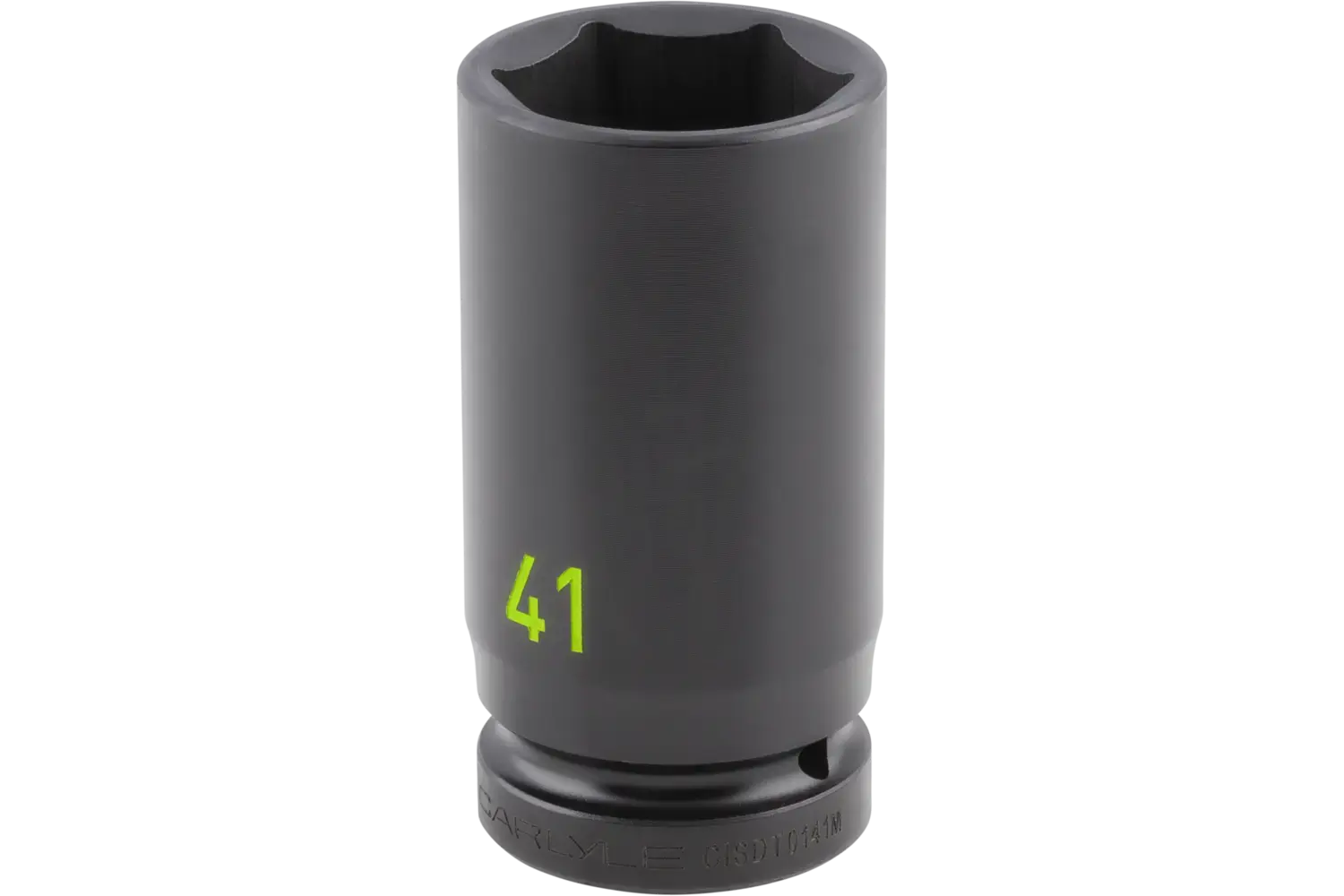

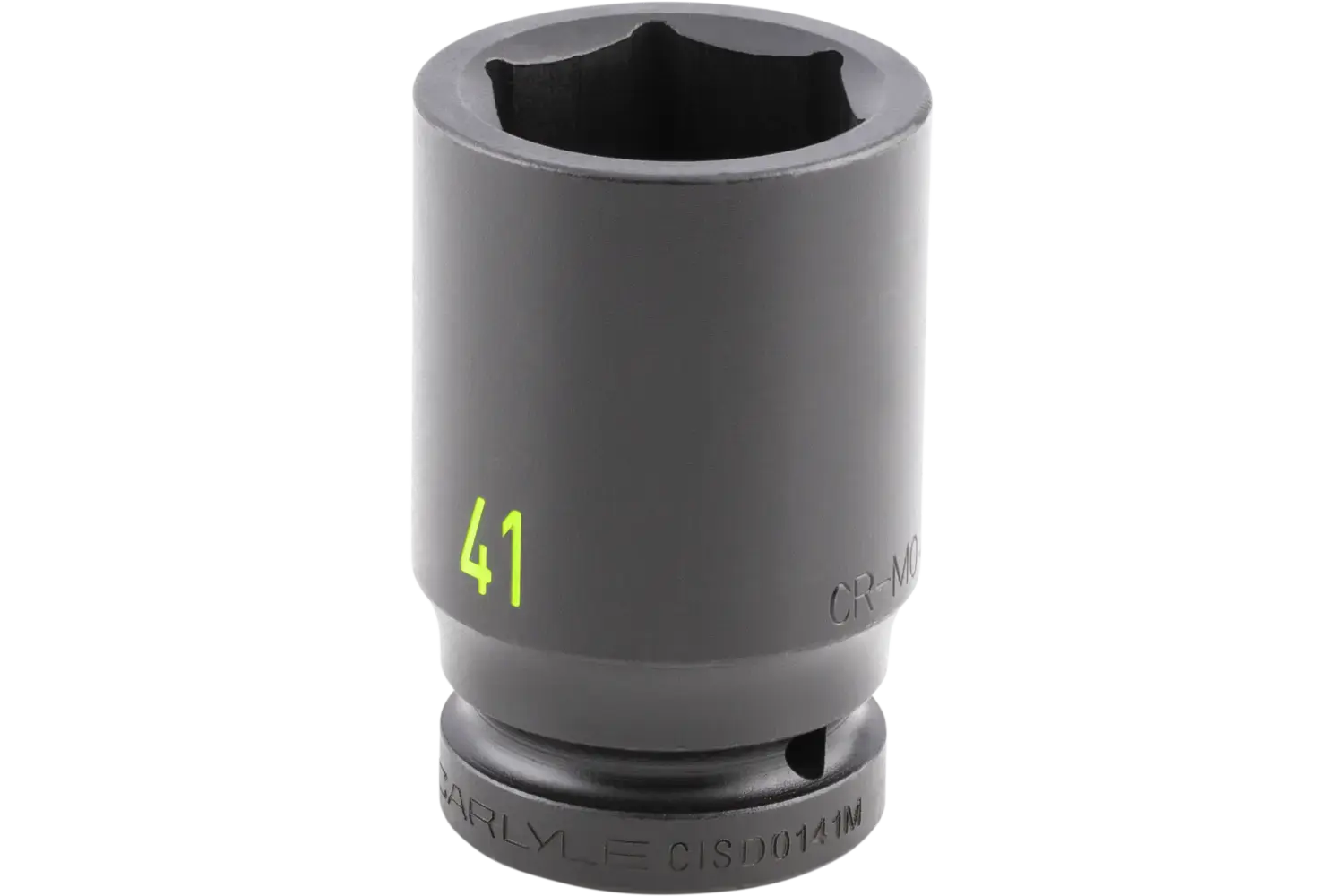

| CISD0141M | 41mm | Magnesium Phosphate | 6 Point | 92 | 24.9 | 49 | 61 | 54 |

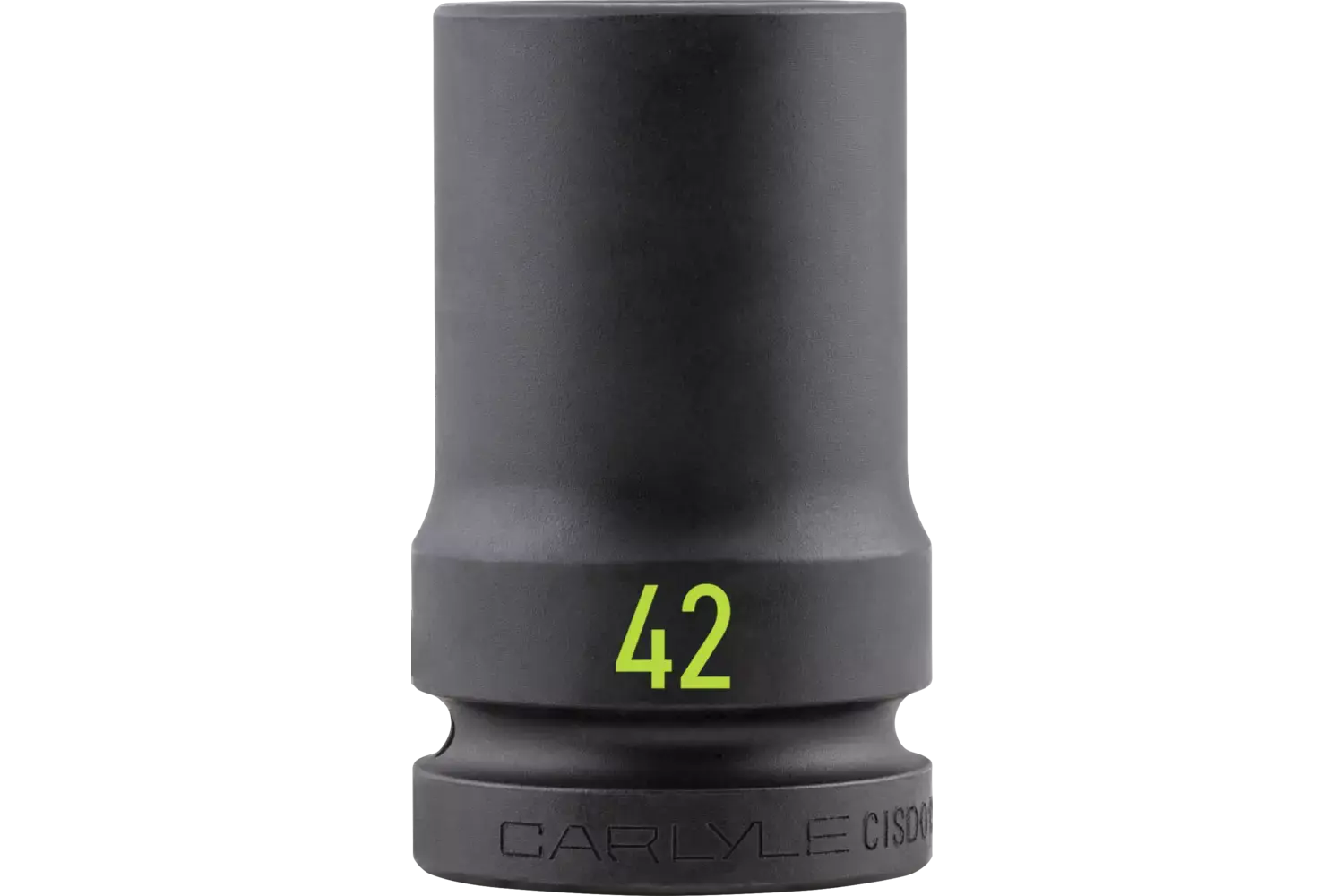

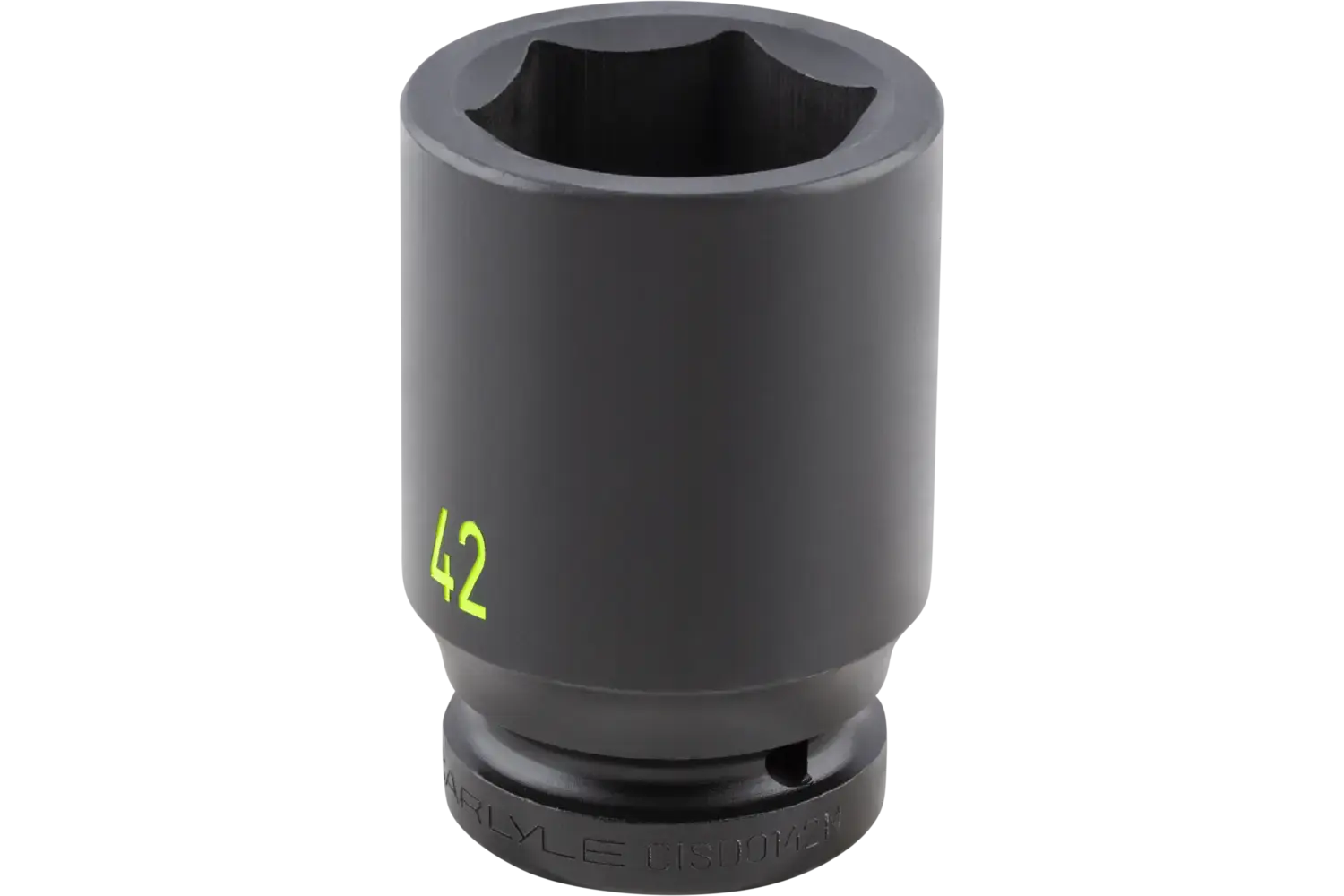

| CISD0142M | 42mm | Magnesium Phosphate | 6 Point | 92 | 25.4 | 50.2 | 64 | 54 |

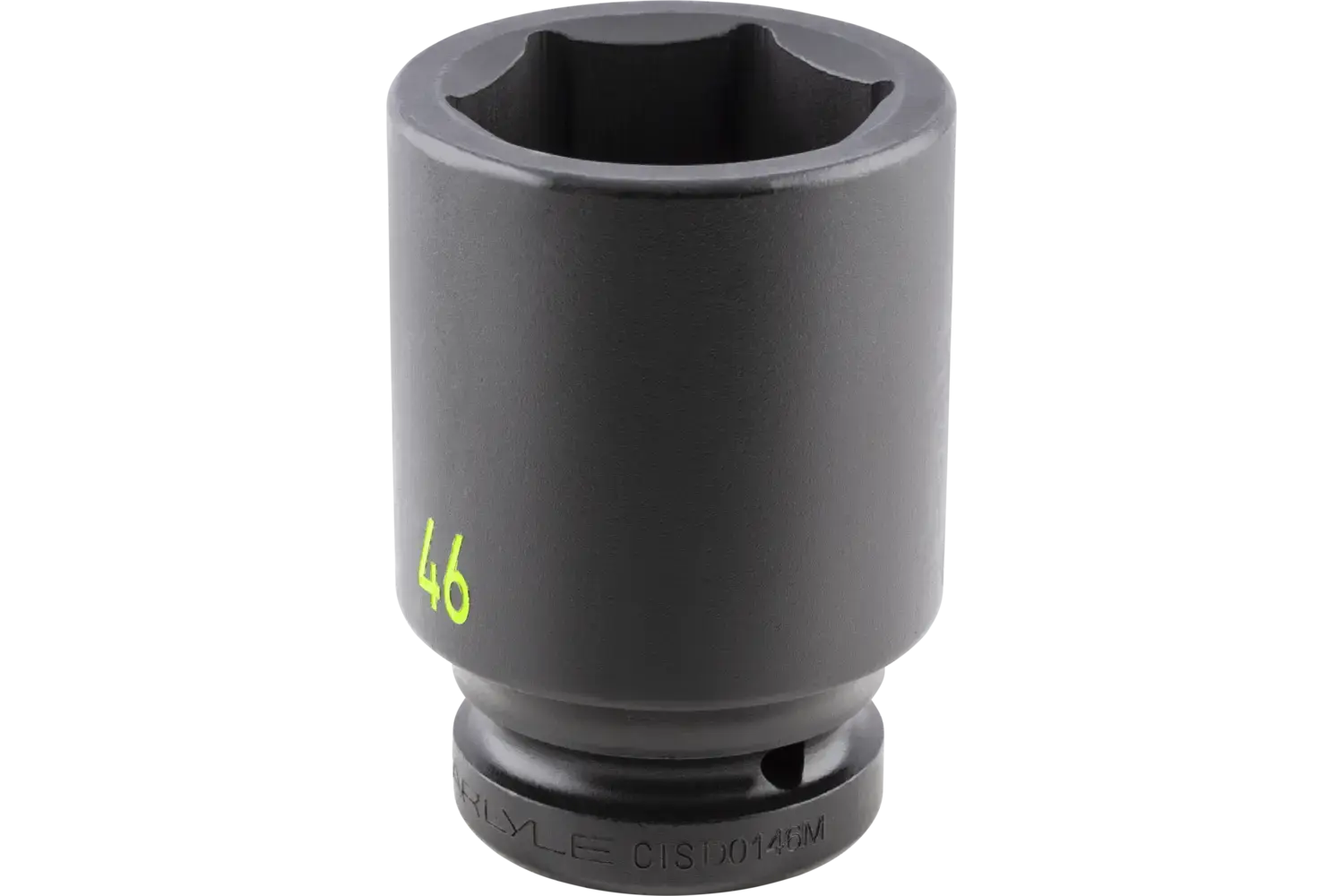

| CISD0146M | 46mm | Magnesium Phosphate | 6 Point | 92 | 25.4 | 56 | 68 | 54 |

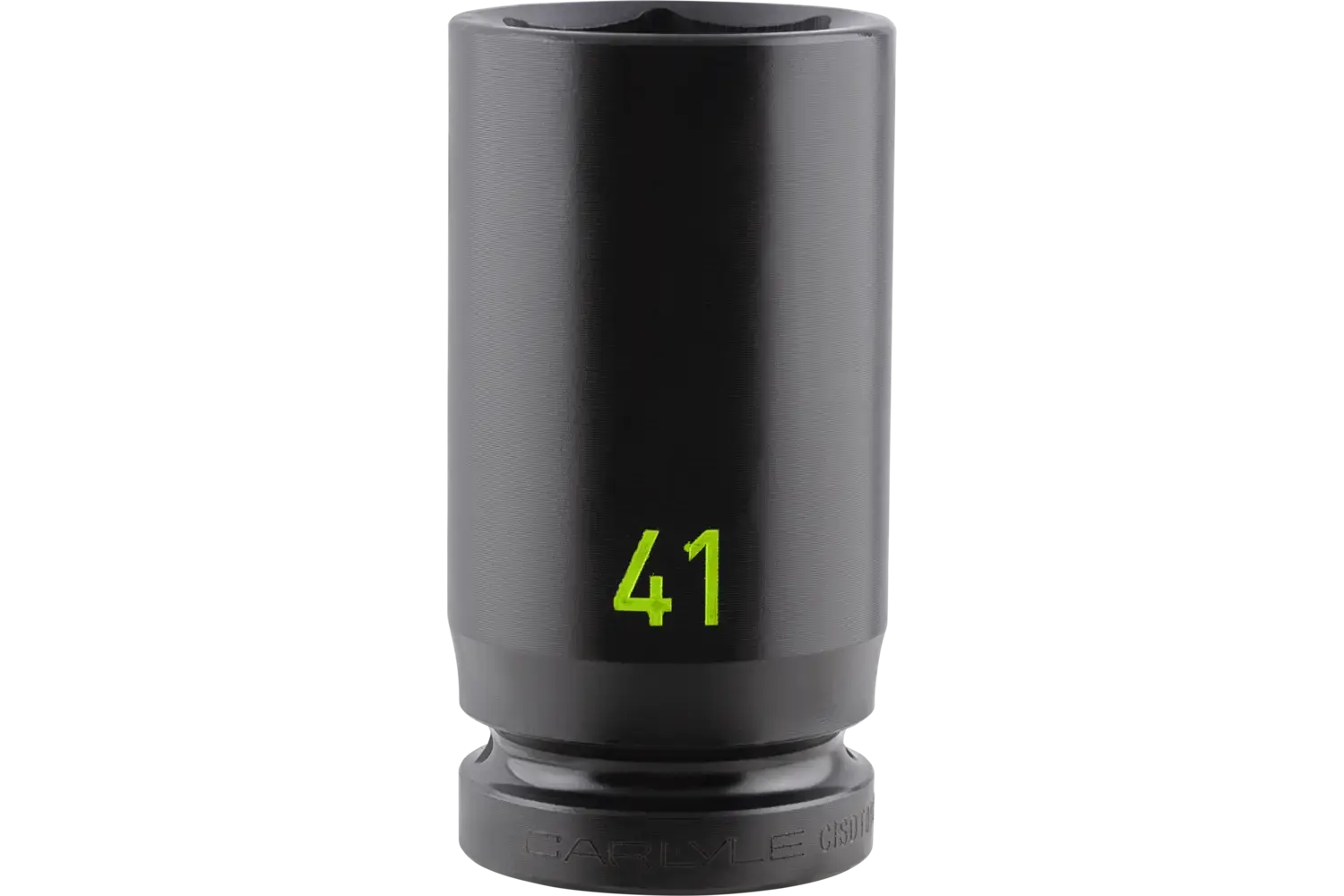

| CISDT0141M | 41mm | Magnesium Phosphate | 6 Point | 108 | 63.5 | 49 | 57 | 54 |
